- دیتاشیت MC74VHC1G01DFT1G

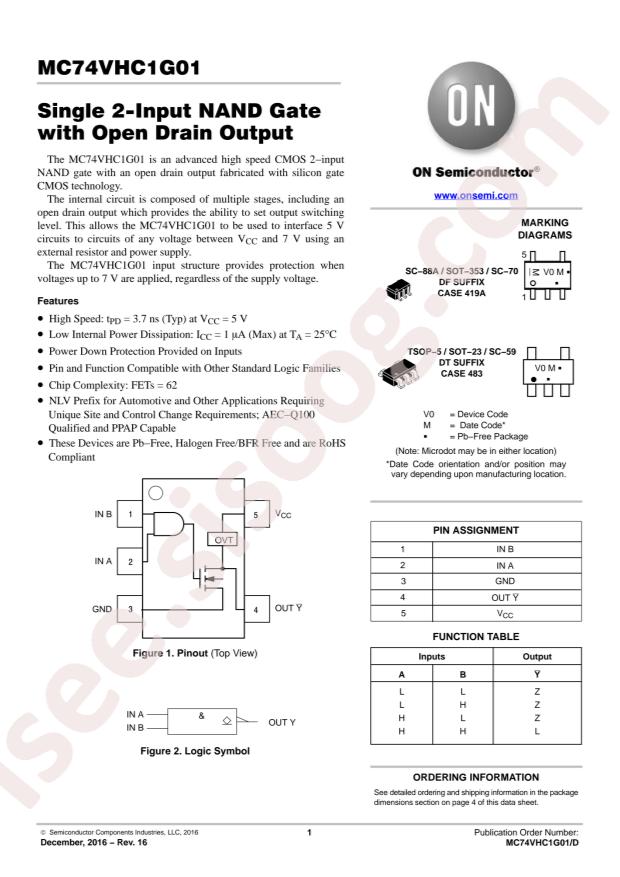

MC74VHC1G01DFT1G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MC74VHC1G01DFT1G |
|---|---|
| حجم فایل | 82.737 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 6 |
دانلود دیتاشیت MC74VHC1G01DFT1G |
دانلود دیتاشیت |
|---|
سایر مستندات
MC74VHC1G01, MC74VHC1GT01 14 pages
مشخصات فنی
- RoHS: true
- Series: 74VHC
- Category: Logic ICs/Gates
- Datasheet: onsemi MC74VHC1G01DFT1G
- Sink Current: 8mA
- Source Current: -
- Supply Voltage: 2V~5.5V
- Logic Gate Type: NAND Gates
- Number of Channels: 1
- Low Level Range (VIL): 0.5V~1.65V
- Operating Temperature: -55°C~+125°C
- High Level Range (VIH): 1.5V~3.85V
- Propagation Delay Time: 7.5ns@5V,50pF
- Quiescent Current (Max): 1uA
- Package: SOT-353
- Manufacturer: onsemi
- Packaging: Cut Tape (CT)
- Part Status: Active
- Logic Type: NAND Gate
- Number of Circuits: 1
- Number of Inputs: 2
- Features: Open Drain
- Voltage - Supply: 2V ~ 5.5V
- Current - Quiescent (Max): 1µA
- Current - Output High, Low: -, 8mA
- Logic Level - Low: 0.5V ~ 1.65V
- Logic Level - High: 1.5V ~ 3.85V
- Max Propagation Delay @ V, Max CL: 7.5ns @ 5V, 50pF
- Mounting Type: Surface Mount
- Supplier Device Package: SC-88A (SC-70-5/SOT-353)
- Package / Case: 5-TSSOP, SC-70-5, SOT-353
- Base Part Number: MC74VHC1G01
- detail: NAND Gate IC 1 Channel Open Drain SC-88A (SC-70-5/SOT-353)
