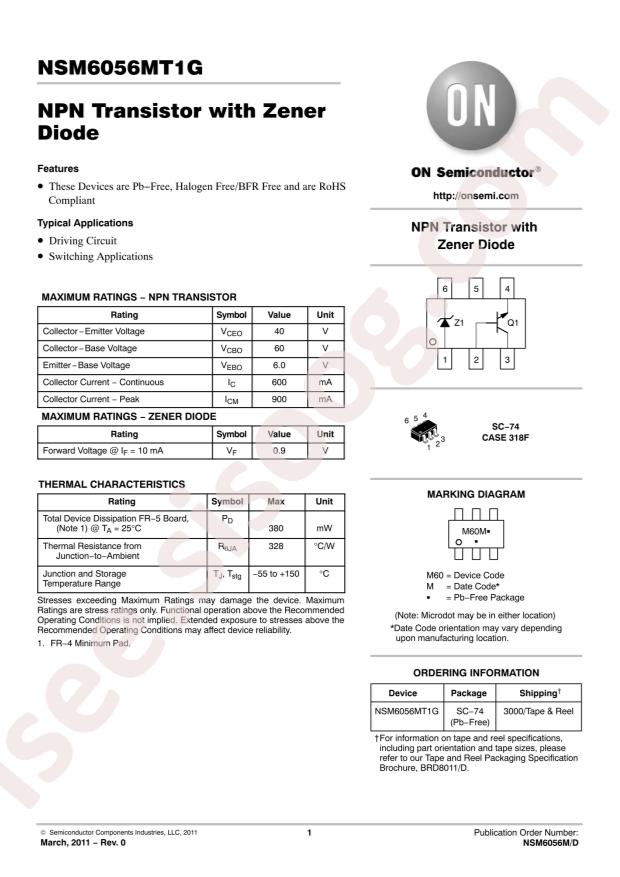

NSM6056MT1G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | NSM6056MT1G |
|---|---|
| حجم فایل | 77.54 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 6 |
دانلود دیتاشیت NSM6056MT1G |
دانلود دیتاشیت |
|---|
سایر مستندات
NSM6056MT1G 5 pages
NSM6056MT1G 5 pages
مشخصات فنی
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet: onsemi NSM6056MT1G
- Transistor Type: 1PCSNPN+齐纳二极管(Isolated)
- Operating Temperature: -55°C~+150°C@(Tj)
- Collector Current (Ic): 600mA
- Power Dissipation (Pd): 380mW
- Transition Frequency (fT): 250MHz
- DC Current Gain (hFE@Ic,Vce): 100@150mA,1V
- Collector Cut-Off Current (Icbo): -
- Collector-Emitter Breakdown Voltage (Vceo): 40V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 750mV@500mA,50mA
- Package: SC-74-6
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Current - Collector (Ic) (Max): 600mA
- Voltage - Collector Emitter Breakdown (Max): 40V
- Vce Saturation (Max) @ Ib, Ic: 750mV @ 50mA, 500mA
- Current - Collector Cutoff (Max): -
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 150mA, 1V
- Power - Max: 380mW
- Frequency - Transition: 250MHz
- Mounting Type: Surface Mount
- Package / Case: SC-74, SOT-457
- Supplier Device Package: SC-74
- Base Part Number: NSM605
- detail: Bipolar (BJT) Transistor NPN + Zener Diode (Isolated) 40V 600mA 250MHz 380mW Surface Mount SC-74
