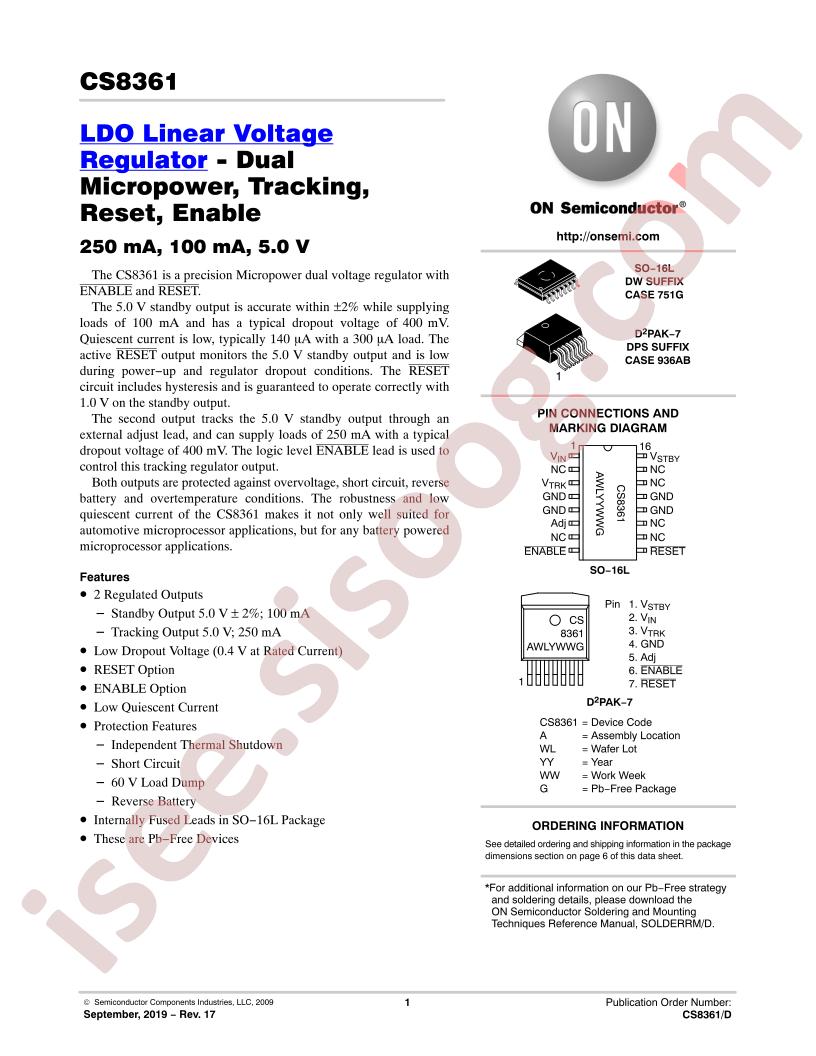

CS8361YDPSR7G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CS8361
|
|
حجم فایل
|
149.602
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
Output Configuration:
Positive
-
Output Type:
Fixed
-
Number of Regulators:
2
-
Voltage - Input (Max):
26V
-
Voltage - Output (Min/Fixed):
5V, Tracking
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.6V @ 100mA, 0.7V @ 250mA
-
Current - Output:
100mA, 250mA
-
Current - Quiescent (Iq):
200µA
-
Current - Supply (Max):
50mA
-
PSRR:
70dB (120Hz)
-
Control Features:
Enable, Reset
-
Protection Features:
Over Temperature, Over Voltage, Reverse Polarity, Short Circuit
-
Operating Temperature:
-40°C ~ 125°C
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
-
Supplier Device Package:
D2PAK-7
-
Base Part Number:
CS8361
-
detail:
Linear Voltage Regulator IC 2 Output 100mA, 250mA D2PAK-7
