دیتاشیت LM431SBCM32X
مشخصات دیتاشیت
| نام دیتاشیت | LM431SA, LM431SB, LM431SC |
|---|---|
| حجم فایل | 261.058 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 12 |
دانلود دیتاشیت LM431SA, LM431SB, LM431SC |

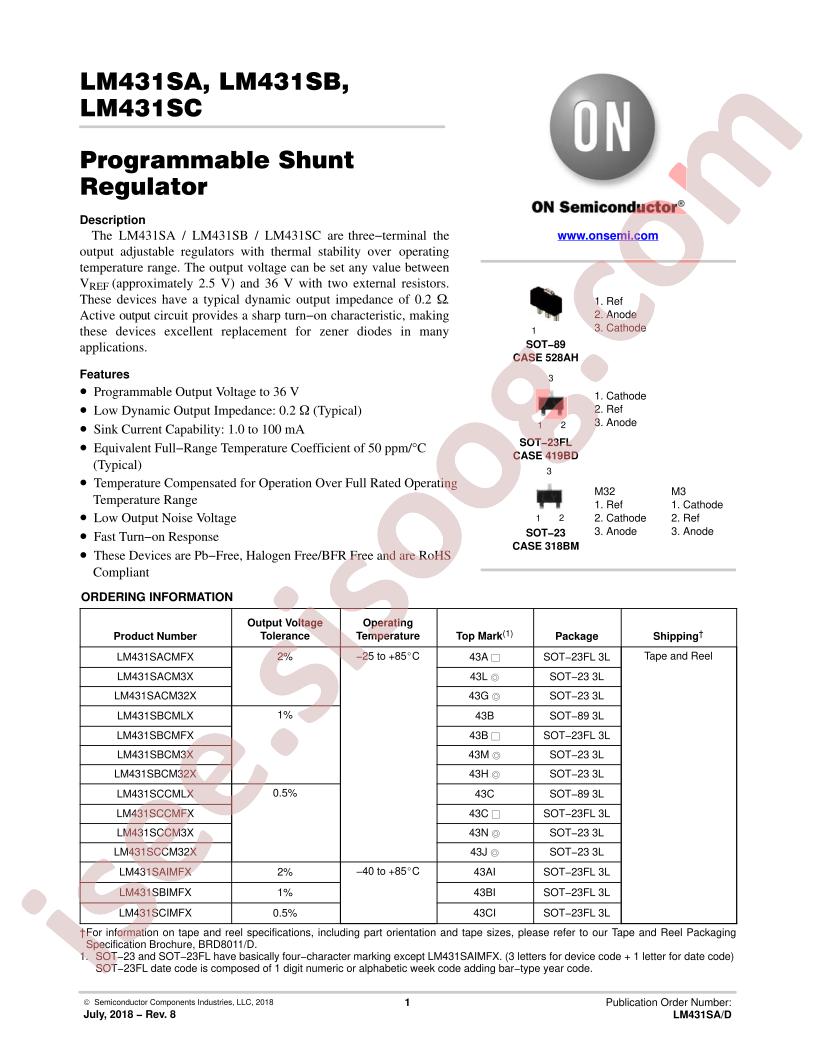

LM431SA, LM431SB, LM431SC Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Voltage References
- Datasheet: onsemi LM431SBCM32X
- Tolerance: ±1%
- Output Type: Adjustable
- Output Current: 100mA
- Output Voltage: 2.495V~36V
- Reference Type: parallel connection
- Operating Temperature: -25°C~+85°C@(Ta)
- Temperature Coefficient: 50ppm/°C
- Package: SOT-23(TO-236)
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Voltage - Output (Min/Fixed): 2.495V
- Voltage - Output (Max): 36V
- Current - Output: 100mA
- Noise - 0.1Hz to 10Hz: -
- Noise - 10Hz to 10kHz: -
- Voltage - Input: -
- Current - Supply: -
- Current - Cathode: 1mA
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3
- Base Part Number: LM431
- detail: Shunt Voltage Reference IC 36V ±1% SOT-23-3
