BF721T1G دیتاشیت

مشخصات دیتاشیت

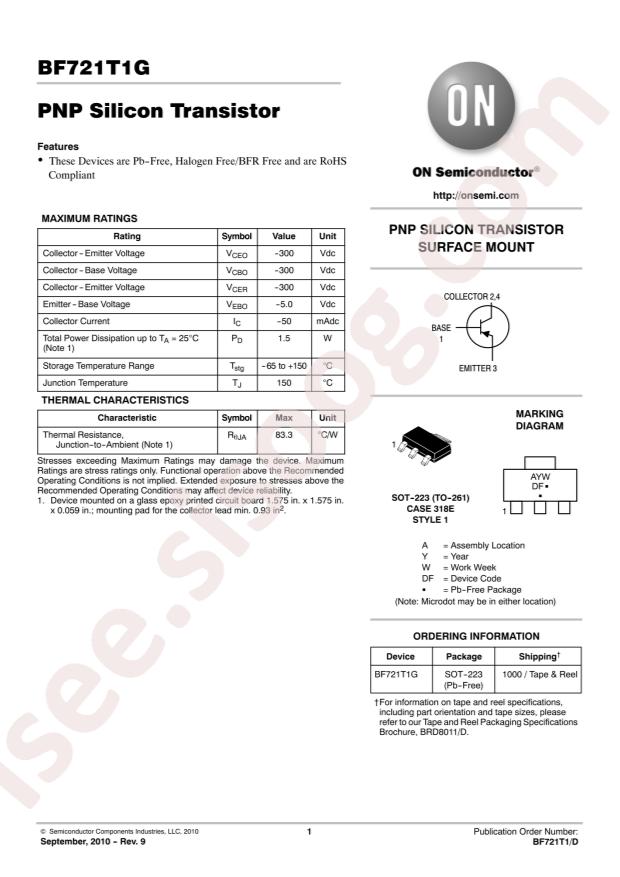

دانلود دیتاشیت BF721T1G	دانلود دیتاشیت

BF721T1 4 pages

RoHS: true
Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
Datasheet: onsemi BF721T1G
Transistor Type: PNP
Operating Temperature: +150°C@(Tj)
Collector Current (Ic): 50mA
Power Dissipation (Pd): 1.5W
Transition Frequency (fT): 60MHz
DC Current Gain (hFE@Ic,Vce): 50@25mA,20V
Collector Cut-Off Current (Icbo): 10nA
Collector-Emitter Breakdown Voltage (Vceo): 300V
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 800mV@30mA,5mA
Package: SOT-223
Manufacturer: onsemi
Series: -
Packaging: Tape & Reel (TR)
Part Status: Obsolete
Current - Collector (Ic) (Max): 50mA
Voltage - Collector Emitter Breakdown (Max): 300V
Vce Saturation (Max) @ Ib, Ic: 800mV @ 5mA, 30mA
Current - Collector Cutoff (Max): 10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce: 50 @ 25mA, 20V
Power - Max: 1.5W
Frequency - Transition: 60MHz
Mounting Type: Surface Mount
Package / Case: TO-261-4, TO-261AA
Supplier Device Package: SOT-223
Base Part Number: BF721
detail: Bipolar (BJT) Transistor PNP 300V 50mA 60MHz 1.5W Surface Mount SOT-223
