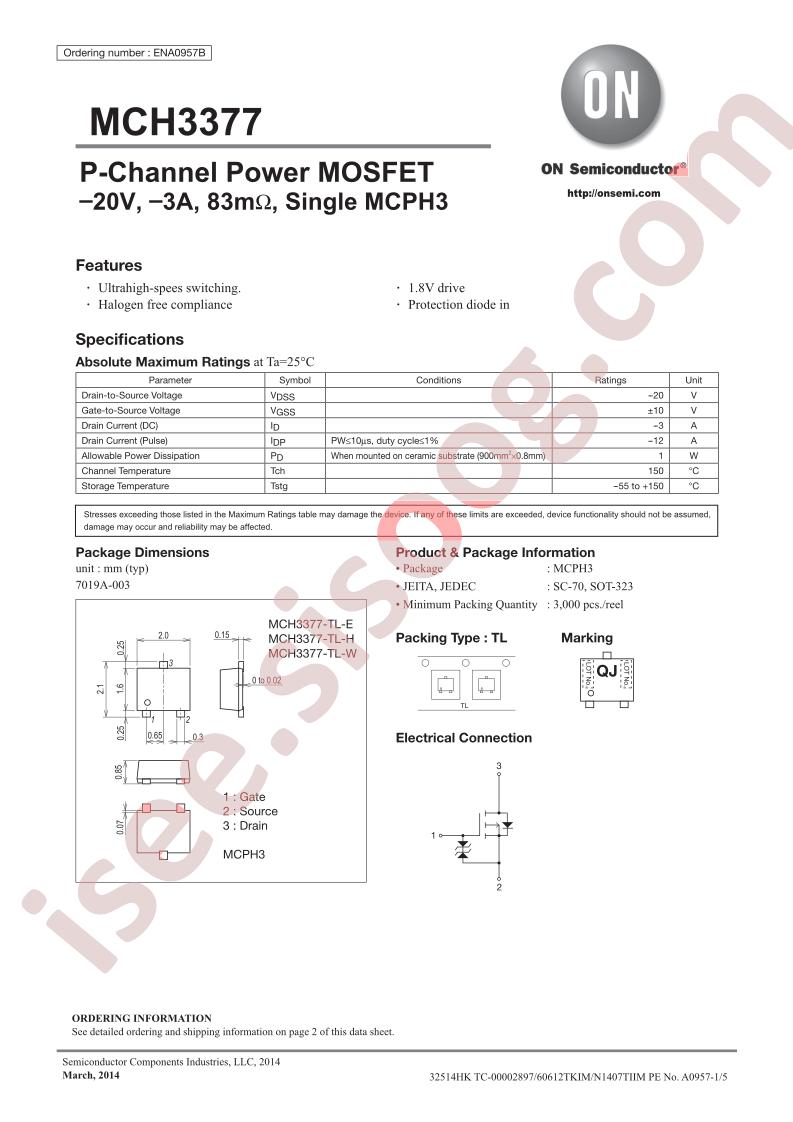

دیتاشیت MCH3377-TL-W
مشخصات دیتاشیت
| نام دیتاشیت |
MCH3377
|
| حجم فایل |
1041.65
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi MCH3377-TL-W
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1W
-
Total Gate Charge (Qg@Vgs):
4.6nC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
375pF@10V
-
Continuous Drain Current (Id):
3A
-
Gate Threshold Voltage (Vgs(th)@Id):
-
-
Reverse Transfer Capacitance (Crss@Vds):
58pF@10V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
63mΩ@4.5V,1.5A
-
Package:
MCPH-3
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
P-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
20V
-
Current - Continuous Drain (Id) @ 25°C:
3A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
1.8V, 4.5V
-
Rds On (Max) @ Id, Vgs:
83mOhm @ 1.5A, 4.5V
-
Vgs(th) (Max) @ Id:
-
-
Gate Charge (Qg) (Max) @ Vgs:
4.6nC @ 4.5V
-
Vgs (Max):
±10V
-
Input Capacitance (Ciss) (Max) @ Vds:
375pF @ 10V
-
FET Feature:
-
-
Power Dissipation (Max):
1W (Ta)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
3-MCPH
-
Package / Case:
3-SMD, Flat Lead
-
Base Part Number:
MCH33
-
detail:
P-Channel 20V 3A (Ta) 1W (Ta) Surface Mount 3-MCPH
