دیتاشیت HCPL-7601#500

HCPL-7601/11

مشخصات دیتاشیت

نام دیتاشیت HCPL-7601/11
حجم فایل 189.842 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

دانلود دیتاشیت HCPL-7601/11

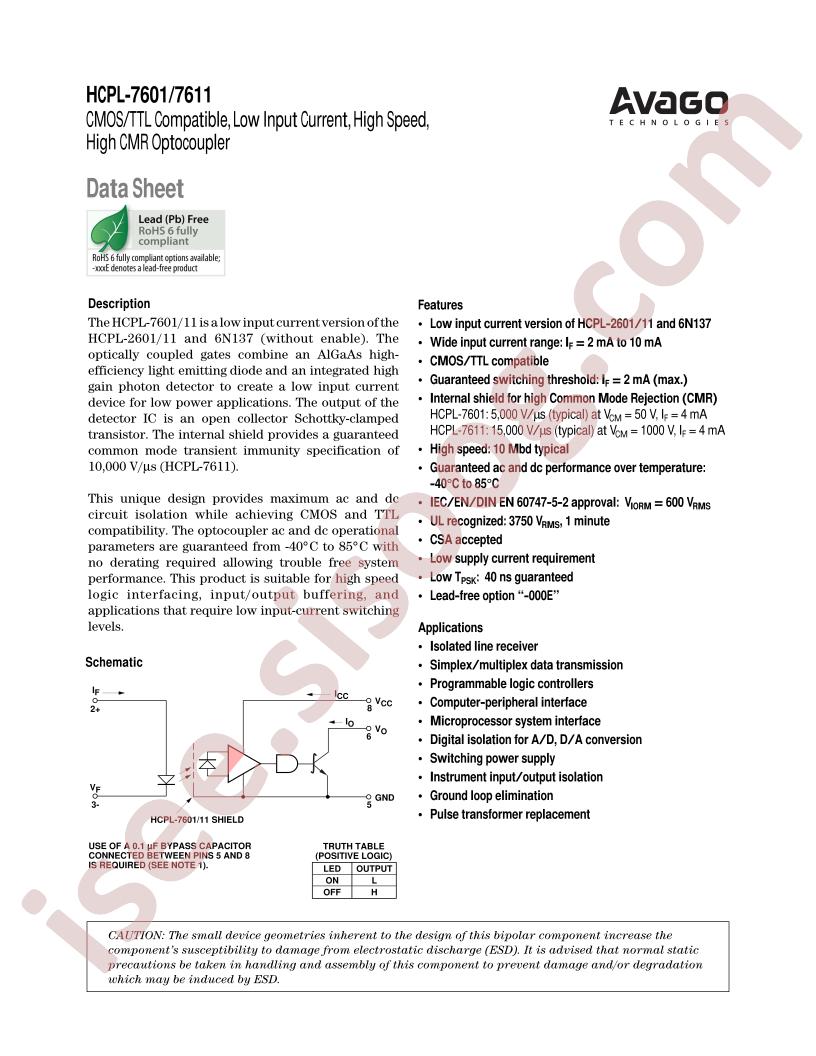

HCPL-7601/11 Datasheet

مشخصات

  • Manufacturer: Broadcom Limited
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Number of Channels: 1
  • Inputs - Side 1/Side 2: 1/0
  • Voltage - Isolation: 3750Vrms
  • Common Mode Transient Immunity (Min): 1kV/µs
  • Input Type: DC
  • Output Type: Open Collector, Schottky Clamped
  • Current - Output / Channel: 50mA
  • Data Rate: 10MBd
  • Propagation Delay tpLH / tpHL (Max): 75ns, 75ns
  • Rise / Fall Time (Typ): 24ns, 10ns
  • Voltage - Forward (Vf) (Typ): 1.5V
  • Current - DC Forward (If) (Max): 20mA
  • Voltage - Supply: 4.5V ~ 5.5V
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Surface Mount
  • Package / Case: 8-SMD, Gull Wing
  • Supplier Device Package: 8-DIP Gull Wing
  • detail: Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 3750Vrms 1 Channel 1kV/µs CMTI 8-DIP Gull Wing
