دیتاشیت CM1293A-02SO

CM1293A

مشخصات دیتاشیت

نام دیتاشیت CM1293A
حجم فایل 524.886 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

دانلود دیتاشیت CM1293A

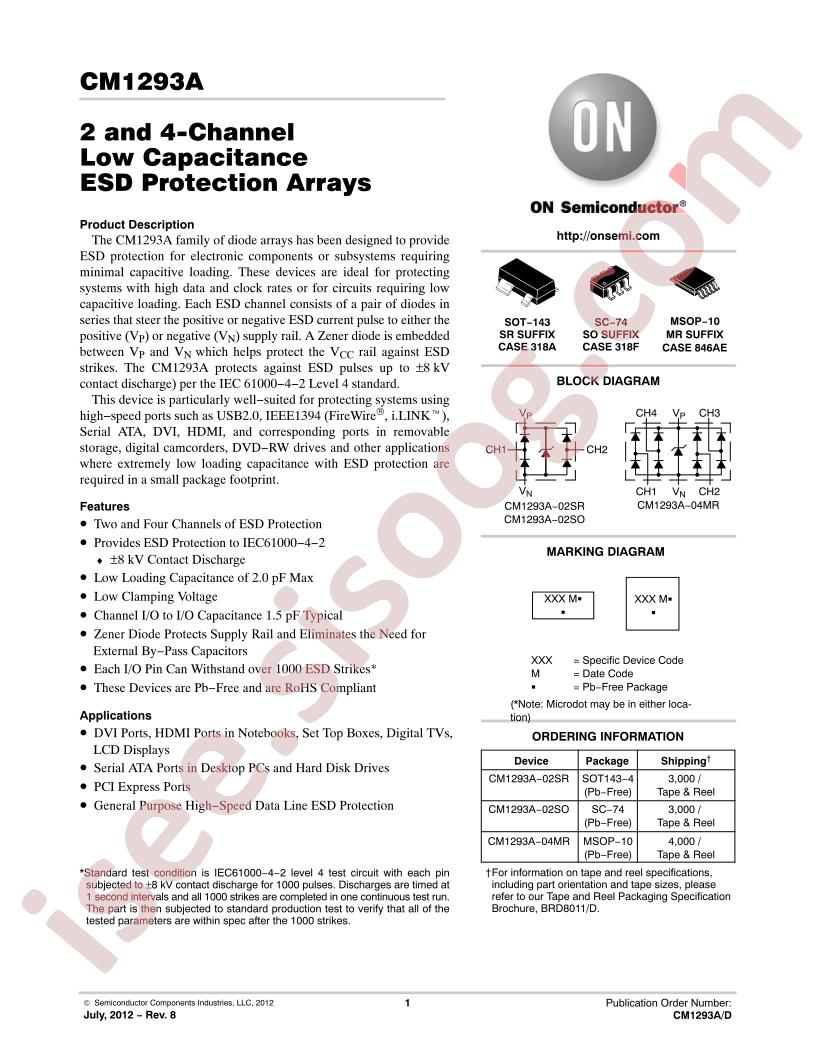

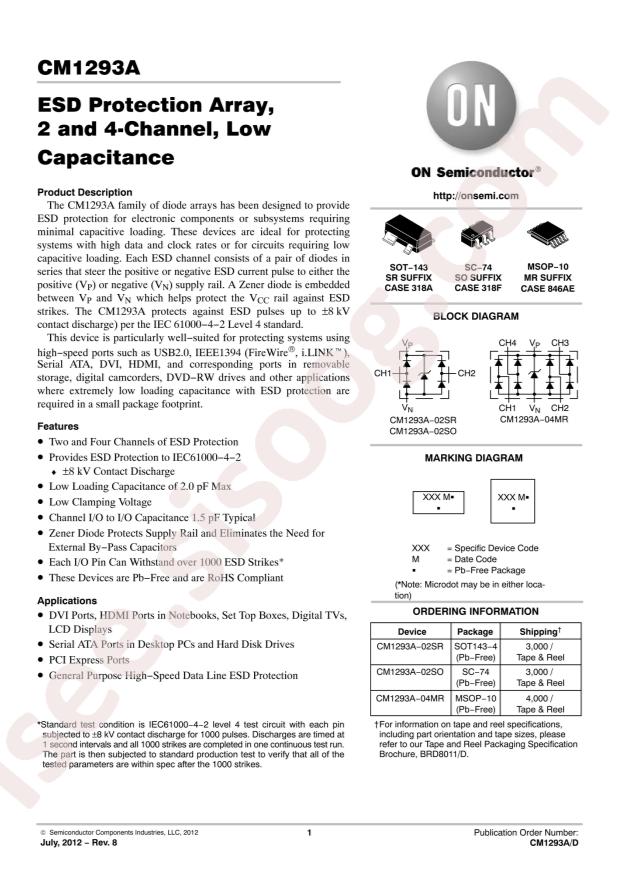

CM1293A Datasheet

مشخصات

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/TVS
  • Datasheet: onsemi CM1293A-02SO
  • Unidirectional Channels: 2
  • Maximum Clamping Voltage: 9.9V
  • Reverse Stand-Off Voltage (Vrwm): 3.3V
  • Peak Pulse Current (Ipp)@10/1000us: 1A@8/20us
  • Package: SC-74-6
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Steering (Rail to Rail)
  • Voltage - Reverse Standoff (Typ): 3.3V
  • Voltage - Breakdown (Min): -
  • Voltage - Clamping (Max) @ Ipp: 9.9V (Typ)
  • Current - Peak Pulse (10/1000µs): 1A (8/20µs)
  • Power - Peak Pulse: -
  • Power Line Protection: Yes
  • Applications: General Purpose
  • Capacitance @ Frequency: -
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: SC-74, SOT-457
  • Supplier Device Package: SC-74
  • Base Part Number: CM1293
  • detail: 9.9V (Typ) Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SC-74
