دیتاشیت 2SB815-6-TB-E

2SB815/2SD1048

مشخصات دیتاشیت

نام دیتاشیت 2SB815/2SD1048
حجم فایل 186.552 کیلوبایت
نوع فایل pdf
تعداد صفحات 4

دانلود دیتاشیت 2SB815/2SD1048

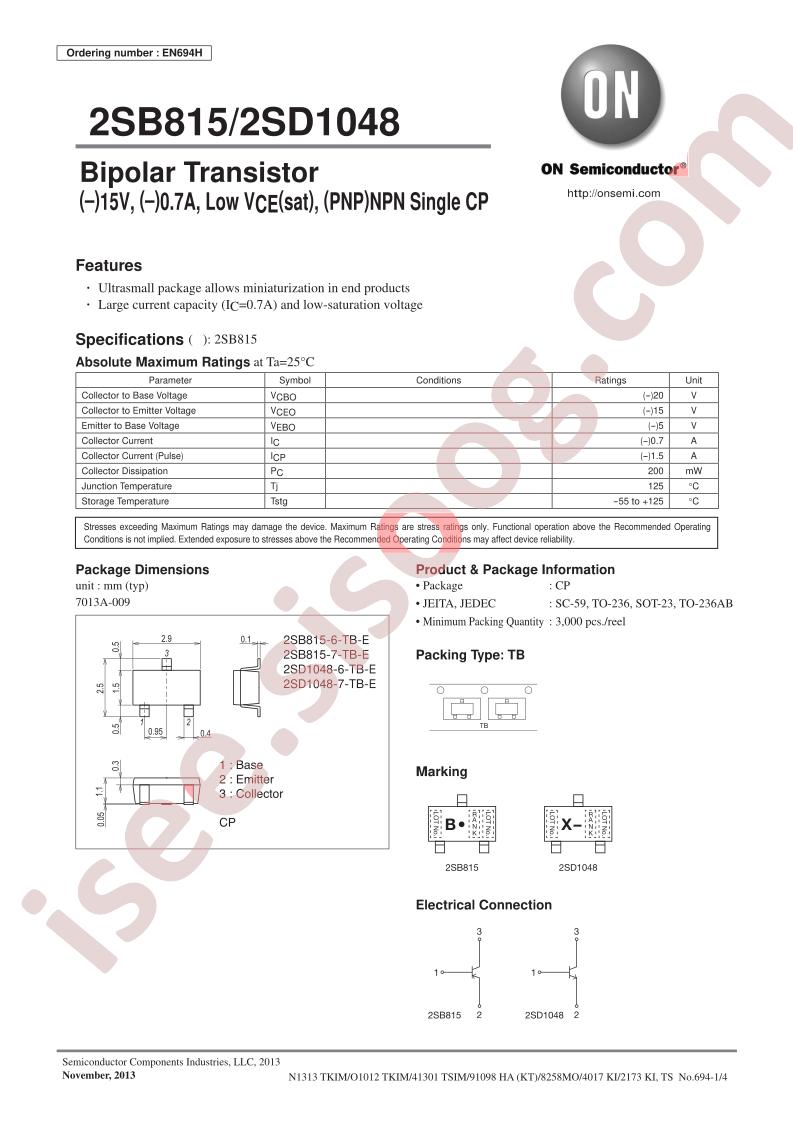

2SB815/2SD1048 Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: onsemi 2SB815-6-TB-E
  • Transistor Type: PNP
  • Collector Current (Ic): 700mA
  • Transition Frequency (fT): 250MHz
  • DC Current Gain (hFE@Ic,Vce): 200@50mA,2V
  • Collector Cut-Off Current (Icbo): 100nA
  • Collector-Emitter Breakdown Voltage (Vceo): 15V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 80mV@10mA,100mA
  • Package: CP-3
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Current - Collector (Ic) (Max): 700mA
  • Voltage - Collector Emitter Breakdown (Max): 15V
  • Vce Saturation (Max) @ Ib, Ic: 80mV @ 10mA, 100mA
  • Current - Collector Cutoff (Max): 100nA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 50mA, 2V
  • Power - Max: 200mW
  • Frequency - Transition: 250MHz
  • Operating Temperature: 125°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: 3-CP
  • Base Part Number: 2SB815
  • detail: Bipolar (BJT) Transistor PNP 15V 700mA 250MHz 200mW Surface Mount 3-CP
