FDPF190N15A دیتاشیت

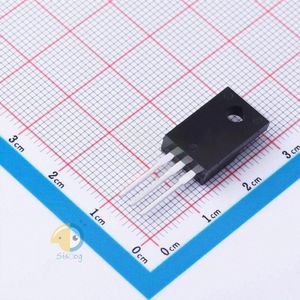

FDPF190N15A

مشخصات دیتاشیت

نام دیتاشیت FDPF190N15A
حجم فایل 70.016 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

مشاهده دیتاشیت FDPF190N15A

دانلود دیتاشیت

سایر مستندات

FDPF190N15A 10 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FDPF190N15A
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 33W
  • Total Gate Charge (Qg@Vgs): 39nC@10V
  • Drain Source Voltage (Vdss): 150V
  • Input Capacitance (Ciss@Vds): 2685pF@25V
  • Continuous Drain Current (Id): 27.4A
  • Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 19mΩ@27.4A,10V
  • Package: TO-220F
  • Manufacturer: onsemi
  • Series: PowerTrench®
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 150V
  • Current - Continuous Drain (Id) @ 25°C: 27.4A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 19mOhm @ 27.4A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 39nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 2685pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 33W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220F
  • Package / Case: TO-220-3 Full Pack
  • Base Part Number: FDPF1
  • detail: N-Channel 150V 27.4A (Tc) 33W (Tc) Through Hole TO-220F
