MC74HC05ADR2G دیتاشیت

MC74HC05ADR2G

مشخصات دیتاشیت

نام دیتاشیت MC74HC05ADR2G
حجم فایل 69.859 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

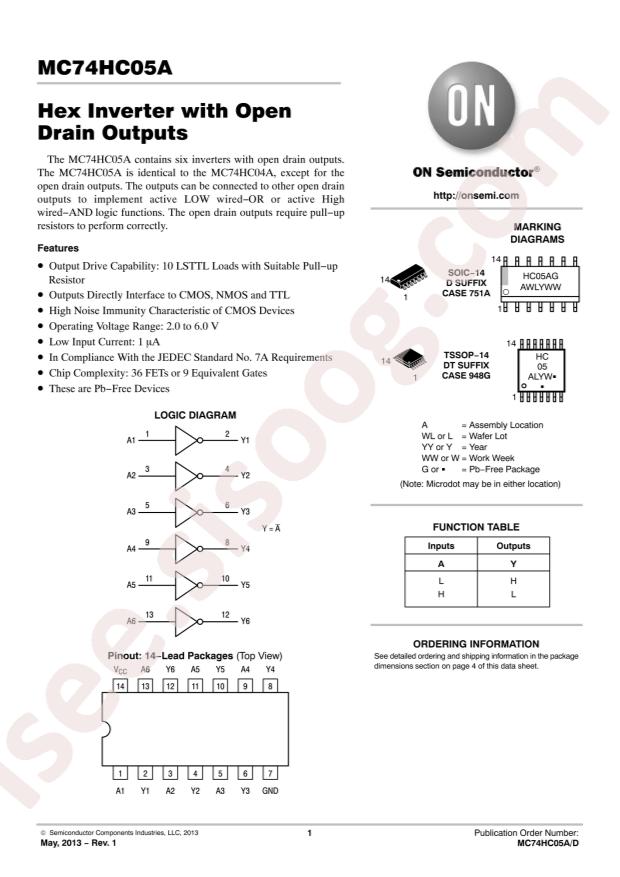

مشاهده دیتاشیت MC74HC05ADR2G

دانلود دیتاشیت

سایر مستندات

MC74HC05A 6 pages

MC74HC05ADR2G 6 pages

مشخصات فنی

  • RoHS: true
  • Series: 74HC
  • Category: Logic ICs/Inverters
  • Datasheet: onsemi MC74HC05ADR2G
  • Sink Current: 5.2mA
  • Number of channels: 6
  • Supply Current (Max): 1uA
  • Low level range (VIL): 0.5V~1.8V
  • Max Propagation Delay: 15ns@6V,50pF
  • Operating Temperature: 55°C~+125°C
  • High level range (VIH): 1.5V~4.2V
  • Supply Voltage(Single): 2V~6V
  • Package: SOIC-14
  • Manufacturer: onsemi
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Logic Type: Inverter
  • Number of Circuits: 6
  • Number of Inputs: 6
  • Features: Open Drain
  • Voltage - Supply: 2V ~ 6V
  • Current - Quiescent (Max): 1µA
  • Current - Output High, Low: -, 5.2mA
  • Logic Level - Low: 0.5V ~ 1.8V
  • Logic Level - High: 1.5V ~ 4.2V
  • Max Propagation Delay @ V, Max CL: 15ns @ 6V, 50pF
  • Mounting Type: Surface Mount
  • Supplier Device Package: 14-SOIC
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Base Part Number: MC74HC05
  • detail: Inverter IC 6 Channel Open Drain 14-SOIC
