دیتاشیت 6HP04CH-TL-W

6HP04CH

مشخصات دیتاشیت

نام دیتاشیت 6HP04CH
حجم فایل 287.38 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت 6HP04CH

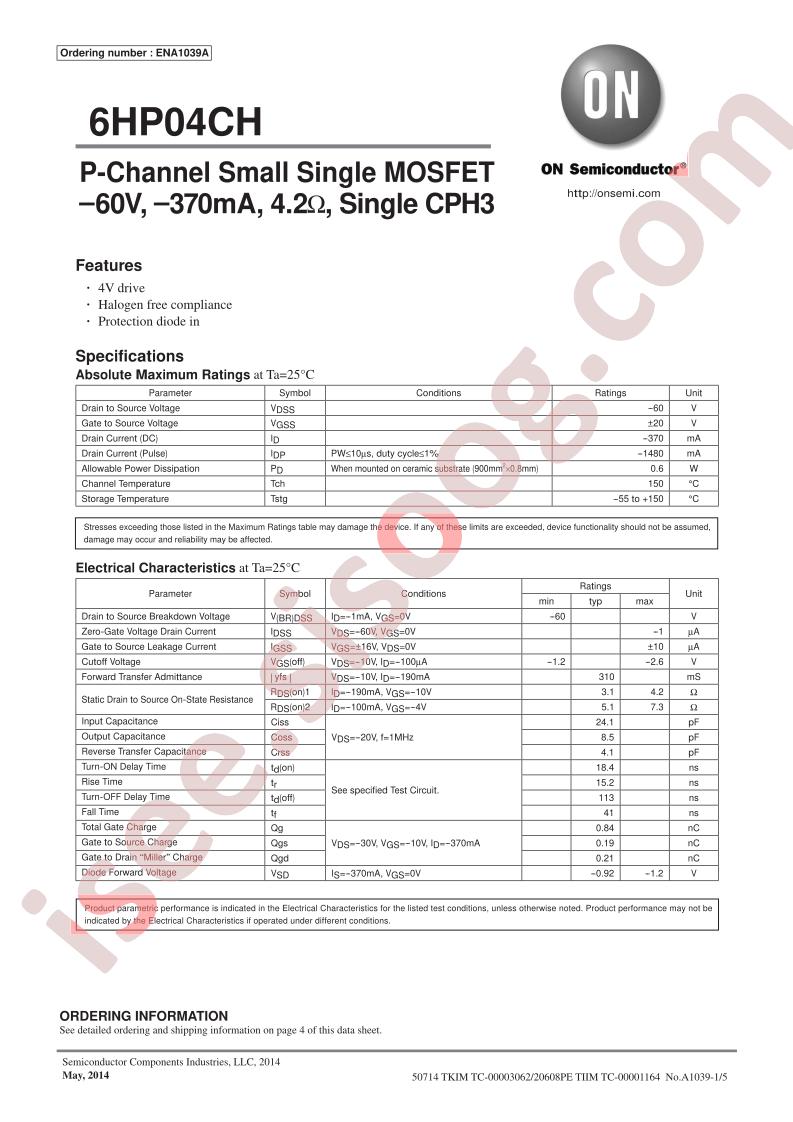

6HP04CH Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: P-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 60V
  • Current - Continuous Drain (Id) @ 25°C: 370mA (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 4V, 10V
  • Rds On (Max) @ Id, Vgs: 4.2Ohm @ 190mA, 10V
  • Vgs(th) (Max) @ Id: -
  • Gate Charge (Qg) (Max) @ Vgs: 0.84nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 24.1pF @ 20V
  • FET Feature: -
  • Power Dissipation (Max): -
  • Operating Temperature: 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 3-CPH
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Base Part Number: 6HP04
  • detail: P-Channel 60V 370mA (Ta) Surface Mount 3-CPH
