دیتاشیت 2SA1416S-TD-E

2SA1416/2SC3646

مشخصات دیتاشیت

نام دیتاشیت 2SA1416/2SC3646
حجم فایل 361.153 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

دانلود دیتاشیت 2SA1416/2SC3646

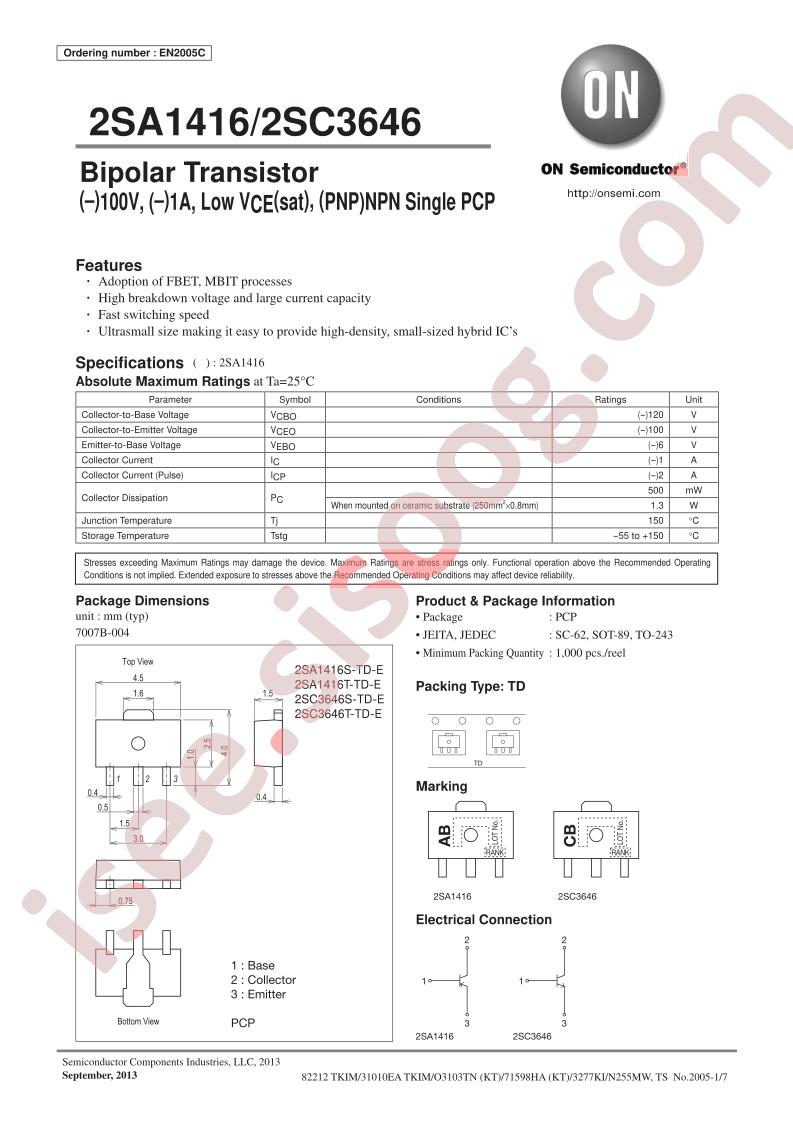

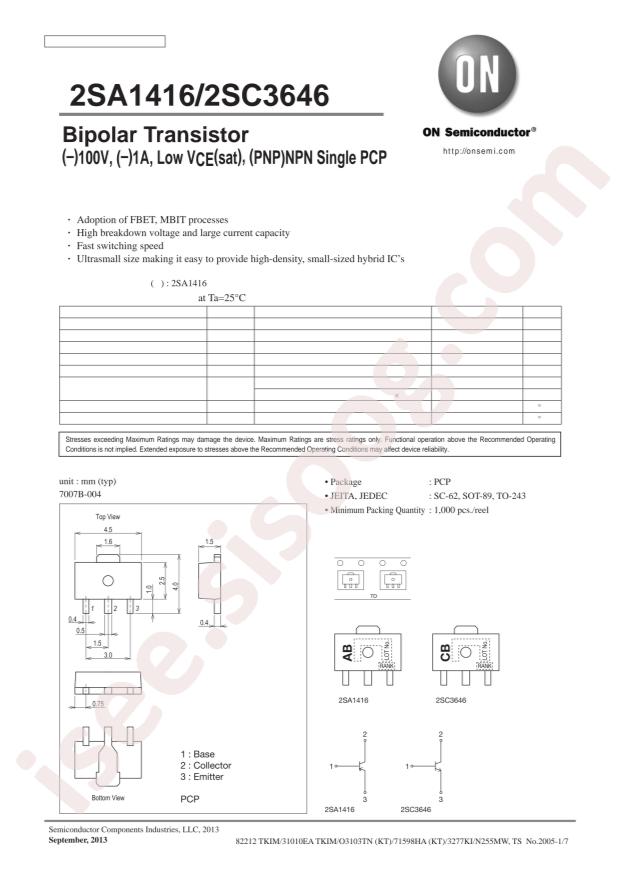

2SA1416/2SC3646 Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: onsemi 2SA1416S-TD-E
  • Transistor Type: PNP
  • Collector Current (Ic): 1A
  • Power Dissipation (Pd): 500mW
  • Transition Frequency (fT): 120MHz
  • DC Current Gain (hFE@Ic,Vce): 100@100mA,5V
  • Collector Cut-Off Current (Icbo): 100nA
  • Collector-Emitter Breakdown Voltage (Vceo): 100V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 400mV@40mA,400mA
  • Package: SOT-89
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Current - Collector (Ic) (Max): 1A
  • Voltage - Collector Emitter Breakdown (Max): 100V
  • Vce Saturation (Max) @ Ib, Ic: 400mV @ 40mA, 400mA
  • Current - Collector Cutoff (Max): 100nA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 100mA, 5V
  • Power - Max: 500mW
  • Frequency - Transition: 120MHz
  • Operating Temperature: 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: TO-243AA
  • Supplier Device Package: PCP
  • Base Part Number: 2SA1416
  • detail: Bipolar (BJT) Transistor PNP 100V 1A 120MHz 500mW Surface Mount PCP
