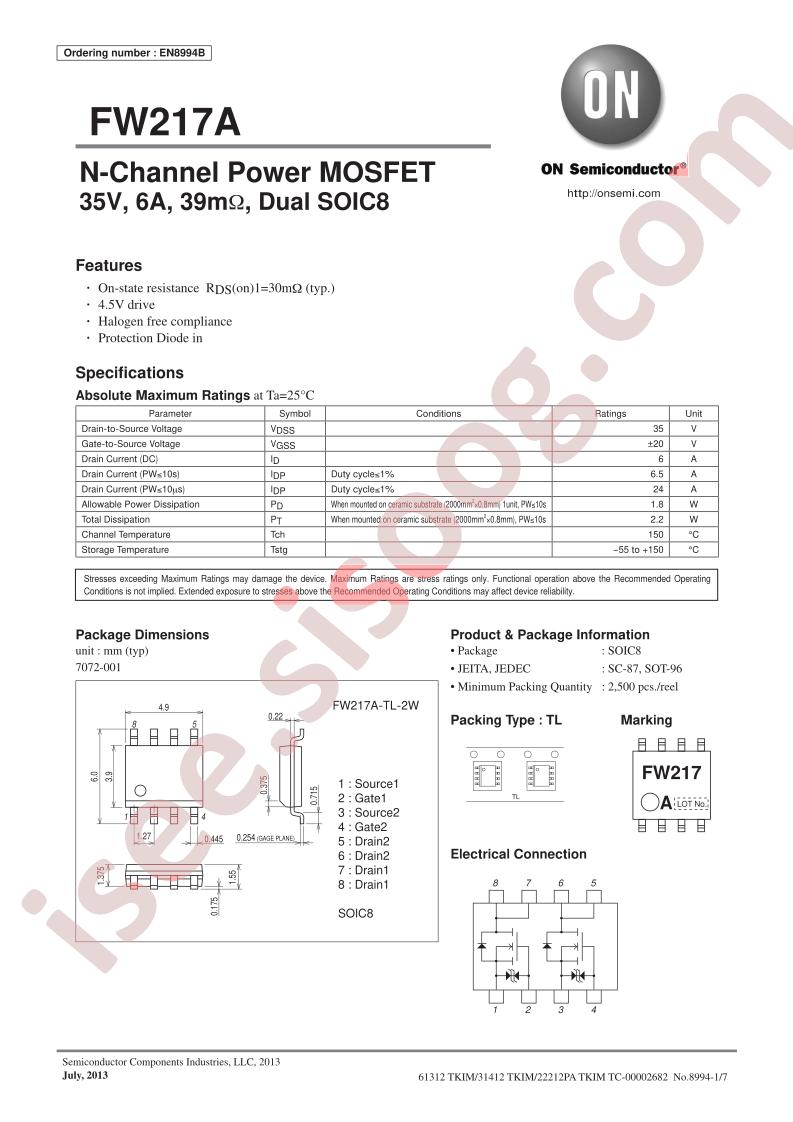

FW217A Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: 2 N-Channel (Dual)
  • FET Feature: Logic Level Gate, 4.5V Drive
  • Drain to Source Voltage (Vdss): 35V
  • Current - Continuous Drain (Id) @ 25°C: 6A
  • Rds On (Max) @ Id, Vgs: 39mOhm @ 6A, 10V
  • Vgs(th) (Max) @ Id: -
  • Gate Charge (Qg) (Max) @ Vgs: 10nC @ 10V
  • Input Capacitance (Ciss) (Max) @ Vds: 470pF @ 20V
  • Power - Max: 2.2W
  • Operating Temperature: 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: FW217
  • detail: Mosfet Array 2 N-Channel (Dual) 35V 6A 2.2W Surface Mount 8-SOIC
