دیتاشیت NVD3055-150T4G-VF01
مشخصات دیتاشیت
| نام دیتاشیت | NTD3055-150, NVD3055-150 |
|---|---|
| حجم فایل | 137.036 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 7 |
دانلود دیتاشیت NTD3055-150, NVD3055-150 |

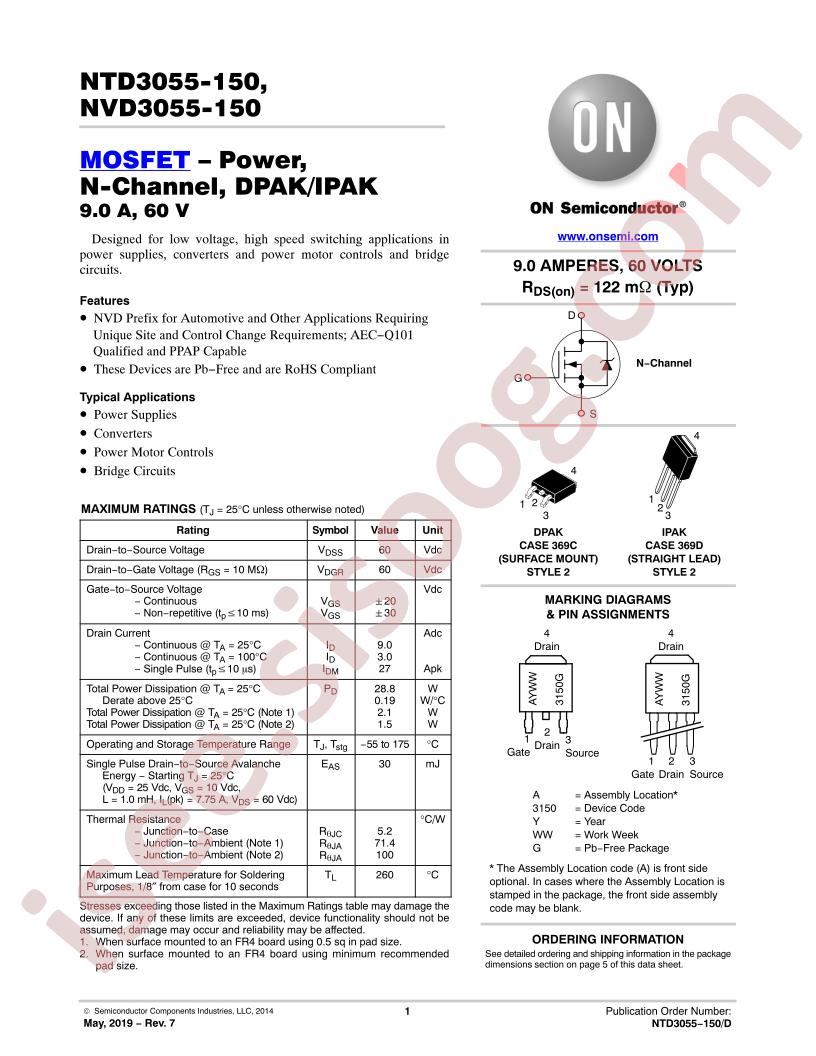

NTD3055-150, NVD3055-150 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: onsemi NVD3055-150T4G-VF01
- Operating Temperature: -55°C~+175°C@(Tj)
- Power Dissipation (Pd): 1.5W;28.8W
- Total Gate Charge (Qg@Vgs): 15nC@10V
- Input Capacitance (Ciss@Vds): 280pF@25V
- Continuous Drain Current (Id): 9A
- Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 150mΩ@4.5A,10V
- Package: DPAK-3
- Manufacturer: onsemi
- Series: Automotive, AEC-Q101
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60V
- Current - Continuous Drain (Id) @ 25°C: 9A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 150mOhm @ 4.5A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 15nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 280pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 28.8W (Ta)
- Mounting Type: Surface Mount
- Supplier Device Package: DPAK
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Base Part Number: NVD305
- detail: N-Channel 60V 9A (Ta) 28.8W (Ta) Surface Mount DPAK
