NCP12400CBAAB0DR2G دیتاشیت

NCP12400CBAAB0DR2G

مشخصات دیتاشیت

نام دیتاشیت NCP12400CBAAB0DR2G
حجم فایل 93.948 کیلوبایت
نوع فایل pdf
تعداد صفحات 47

دانلود دیتاشیت NCP12400CBAAB0DR2G

دانلود دیتاشیت

سایر مستندات

NCP12400 44 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Topology: Flyback
  • Datasheet: onsemi NCP12400CBAAB0DR2G
  • Duty Cycle: 80%
  • Supply Voltage: 10.5V~28V
  • Output Isolation: Isolation
  • Switching Frequency: 65kHz
  • Operating Temperature: -40°C~+150°C@(Tj)

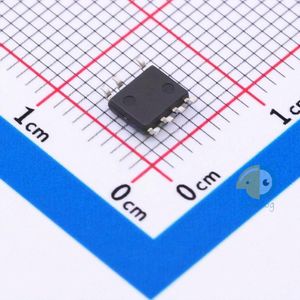

  • Package: SOP-7
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Internal Switch(s): No
  • Voltage - Breakdown: -
  • Voltage - Start Up: 12V
  • Voltage - Supply (Vcc/Vdd): 10.5V ~ 28V
  • Frequency - Switching: 65kHz
  • Fault Protection: Over Load, Over Power, Over Temperature, Over Voltage
  • Control Features: -
  • Package / Case: 8-SOIC (0.154", 3.90mm Width), 7 Leads
  • Supplier Device Package: 7-SOIC
  • Mounting Type: Surface Mount
  • Base Part Number: NCP12400
  • detail: Converter Offline Flyback Topology 65kHz 7-SOIC
