دیتاشیت NCV8184DR2G

NCV8184

مشخصات دیتاشیت

نام دیتاشیت NCV8184
حجم فایل 1968.89 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت NCV8184

NCV8184 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: onsemi NCV8184DR2G
  • Output Type: -

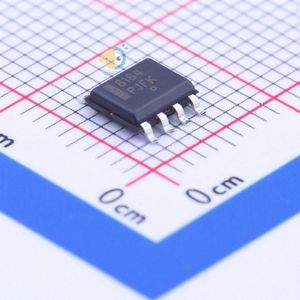

  • Package: SOP-8
  • Manufacturer: onsemi
  • Series: Automotive, AEC-Q100
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Output Configuration: Positive
  • Number of Regulators: 1
  • Voltage - Input (Max): 42V
  • Voltage - Output (Min/Fixed): Tracking
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.6V @ 60mA
  • Current - Output: 70mA
  • Current - Quiescent (Iq): 20µA
  • Current - Supply (Max): 7mA
  • PSRR: 60dB (120Hz)
  • Control Features: Enable
  • Protection Features: Over Temperature
  • Operating Temperature: -40°C ~ 150°C
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: NCV8184
  • detail: Linear Voltage Regulator IC 1 Output 70mA 8-SOIC
