MBR5H100MFST1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MBR5H100MFST1G
|
|
حجم فایل
|
98.653
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
onsemi MBR5H100MFST1G
-
Reverse Voltage (Vr):
100V
-
Forward Voltage (Vf@If):
730mV@5A
-
Average Rectified Current (Io):
5A
-
Package:
SO-8FL
-
Manufacturer:
onsemi
-
Series:
SWITCHMODE™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
100V
-
Current - Average Rectified (Io):
5A
-
Voltage - Forward (Vf) (Max) @ If:
730mV @ 5A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
100µA @ 100V
-
Capacitance @ Vr, F:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
8-PowerTDFN, 5 Leads
-
Supplier Device Package:
5-DFN (5x6) (8-SOFL)
-
Operating Temperature - Junction:
-55°C ~ 175°C
-
Base Part Number:
MBR5H100
-
detail:

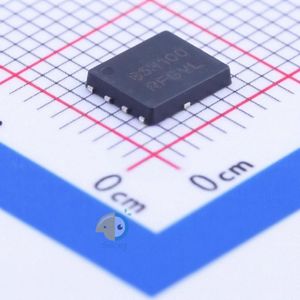

Diode Schottky 100V 5A Surface Mount 5-DFN (5x6) (8-SOFL)
