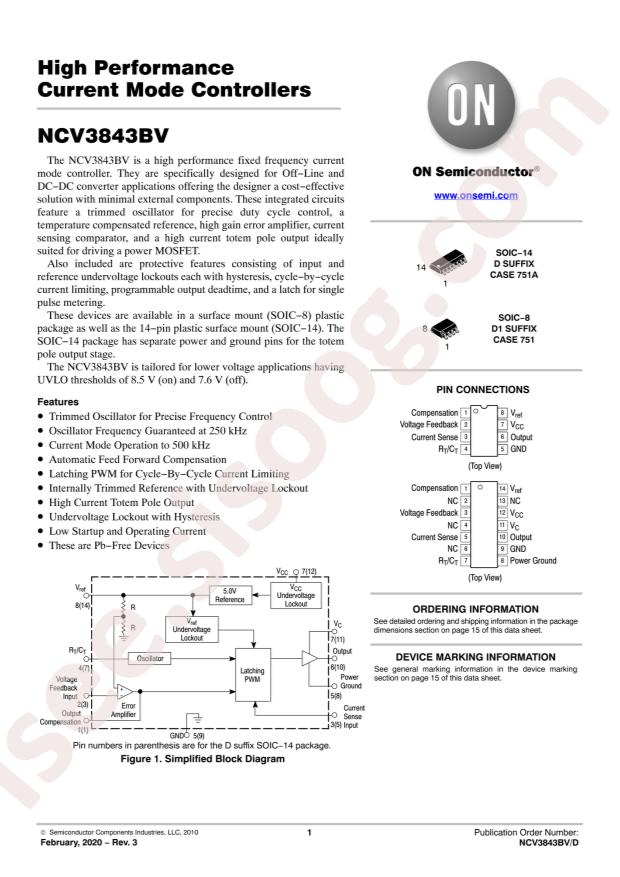

NCV3843BVD1R2G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCV3843BVD1R2G
|
|
حجم فایل
|
88.345
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
20
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/AC-DC Controllers & Regulators
-
Topology:
Flyback
-
Datasheet:
onsemi NCV3843BVD1R2G
-
Duty Cycle:
96%
-
Supply Voltage:
7.6V~30V
-
Switching Frequency:
500kHz
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Package:
SOP-8
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q100
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Type:
Transistor Driver
-
Function:
Step-Up/Step-Down
-
Output Configuration:
Positive, Isolation Capable
-
Number of Outputs:
1
-
Output Phases:
1
-
Voltage - Supply (Vcc/Vdd):
7.6V ~ 30V
-
Frequency - Switching:
500kHz
-
Duty Cycle (Max):
96%
-
Synchronous Rectifier:
No
-
Clock Sync:
No
-
Serial Interfaces:
-
-
Control Features:
Frequency Control
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SOIC
-
Base Part Number:
NCV3843
-
detail:
Flyback Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 8-SOIC
