دیتاشیت FW389-TL-2W

FW389

مشخصات دیتاشیت

نام دیتاشیت FW389
حجم فایل 1225.111 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت FW389

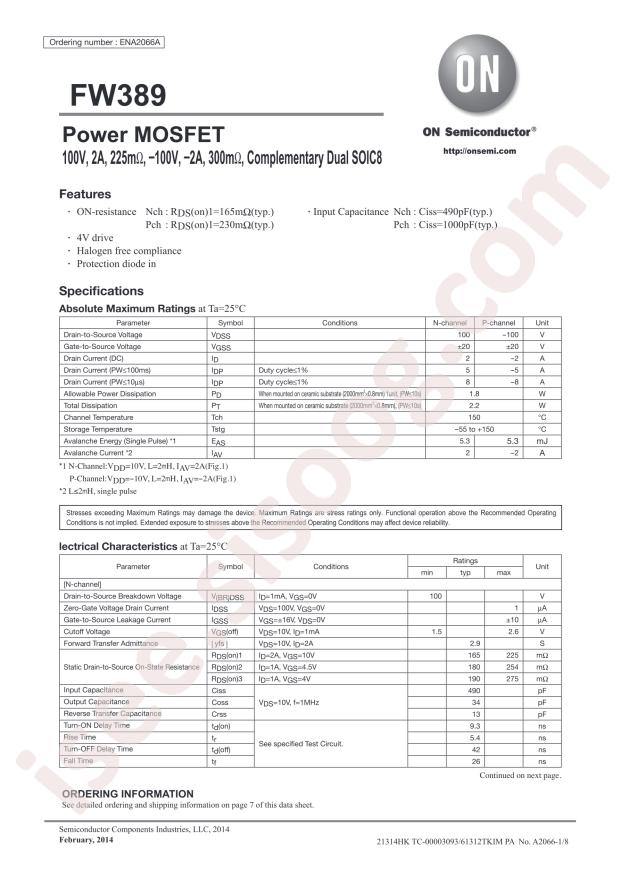

FW389 Datasheet

مشخصات

  • RoHS: true
  • Type: -
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FW389-TL-2W
  • Total Gate Charge (Qg@Vgs): 10nC@10V
  • Drain Source Voltage (Vdss): 100V
  • Input Capacitance (Ciss@Vds): 490pF@10V
  • Gate Threshold Voltage (Vgs(th)@Id): -
  • Reverse Transfer Capacitance (Crss@Vds): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 225mΩ@2A,10V
  • Package: SOP-8
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N and P-Channel
  • FET Feature: Logic Level Gate, 4V Drive
  • Drain to Source Voltage (Vdss): 100V
  • Current - Continuous Drain (Id) @ 25°C: 2A
  • Rds On (Max) @ Id, Vgs: 225mOhm @ 2A, 10V
  • Vgs(th) (Max) @ Id: -
  • Gate Charge (Qg) (Max) @ Vgs: 10nC @ 10V
  • Input Capacitance (Ciss) (Max) @ Vds: 490pF @ 10V
  • Power - Max: 1.8W
  • Operating Temperature: 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: FW389
  • detail: Mosfet Array N and P-Channel 100V 2A 1.8W Surface Mount 8-SOIC
