FDS3590 دیتاشیت

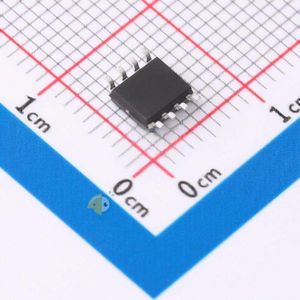

FDS3590

مشخصات دیتاشیت

نام دیتاشیت FDS3590
حجم فایل 70.016 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

مشاهده دیتاشیت FDS3590

دانلود دیتاشیت

سایر مستندات

FDS3590 8 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FDS3590
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 2.5W
  • Total Gate Charge (Qg@Vgs): 35nC@10V
  • Drain Source Voltage (Vdss): 80V
  • Input Capacitance (Ciss@Vds): 1180pF@40V
  • Continuous Drain Current (Id): 6.5A
  • Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 39mΩ@6.5A,10V
  • Package: SOP-8
  • Manufacturer: onsemi
  • Series: PowerTrench®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 80V
  • Current - Continuous Drain (Id) @ 25°C: 6.5A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
  • Rds On (Max) @ Id, Vgs: 39mOhm @ 6.5A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 35nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 1180pF @ 40V
  • FET Feature: -
  • Power Dissipation (Max): 2.5W (Ta)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 8-SOIC
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Base Part Number: FDS35
  • detail: N-Channel 80V 6.5A (Ta) 2.5W (Ta) Surface Mount 8-SOIC
