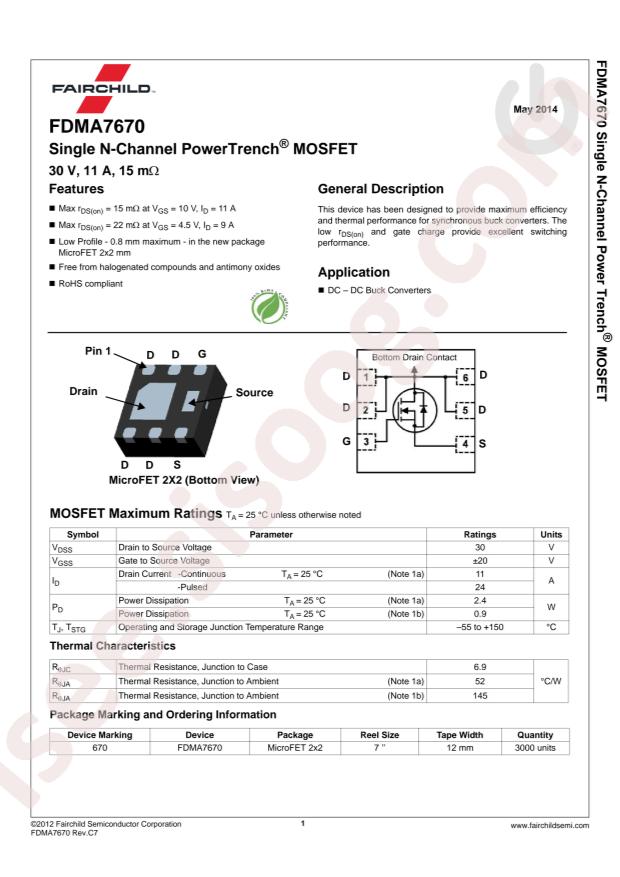

FDMA7670 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FDMA7670
|
|
حجم فایل
|
75.736
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FDMA7670
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
2.4W
-
Total Gate Charge (Qg@Vgs):
22nC@10V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
1360pF@15V
-
Continuous Drain Current (Id):
11A
-
Gate Threshold Voltage (Vgs(th)@Id):
3V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
15mΩ@11A,10V
-
Package:
MicroFET-6
-
Manufacturer:
onsemi
-
Series:
PowerTrench®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
11A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
15mOhm @ 11A, 10V
-
Vgs(th) (Max) @ Id:
3V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
22nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
1360pF @ 15V
-
FET Feature:
-
-
Power Dissipation (Max):
2.4W (Ta)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
6-MicroFET (2x2)
-
Package / Case:
6-VDFN Exposed Pad
-
Base Part Number:
FDMA76
-
detail:
N-Channel 30V 11A (Ta) 2.4W (Ta) Surface Mount 6-MicroFET (2x2)
