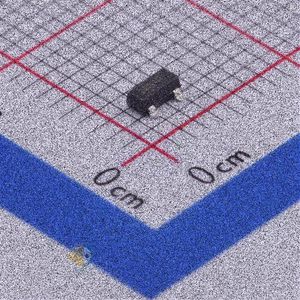

دیتاشیت MVGSF1N03LT1G

MGSF1N03L, MVGSF1N03L

مشخصات دیتاشیت

نام دیتاشیت MGSF1N03L, MVGSF1N03L
حجم فایل 130.19 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت MGSF1N03L, MVGSF1N03L

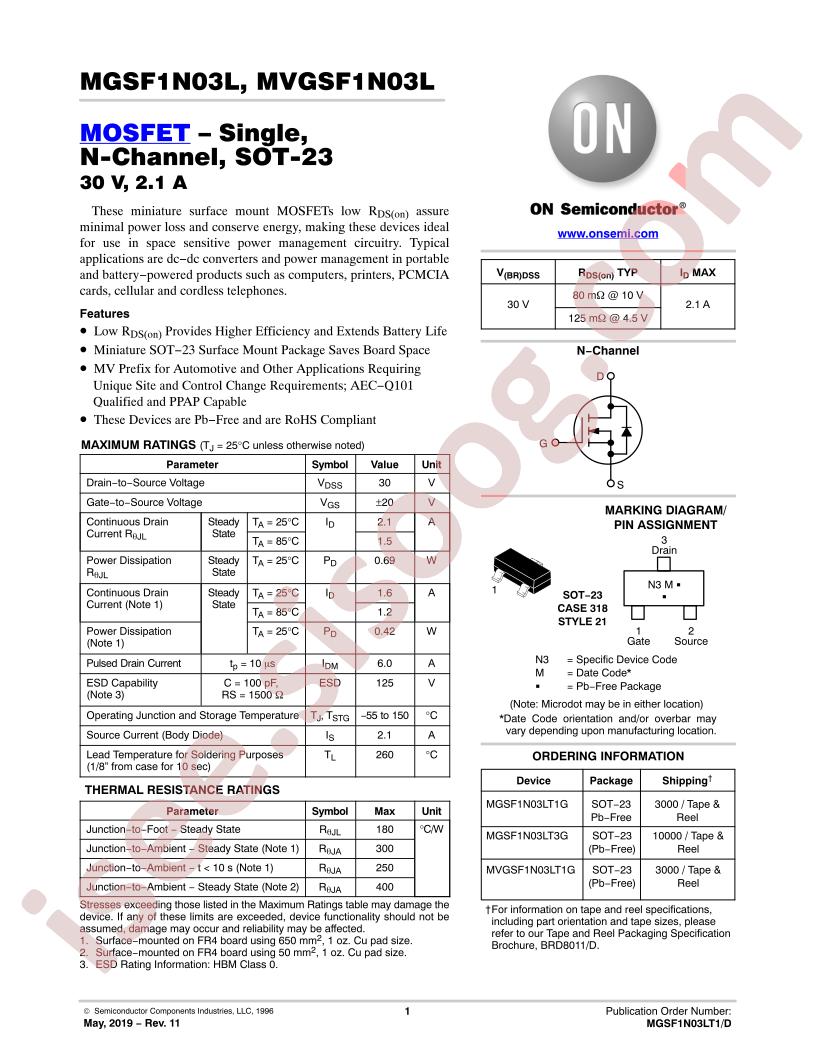

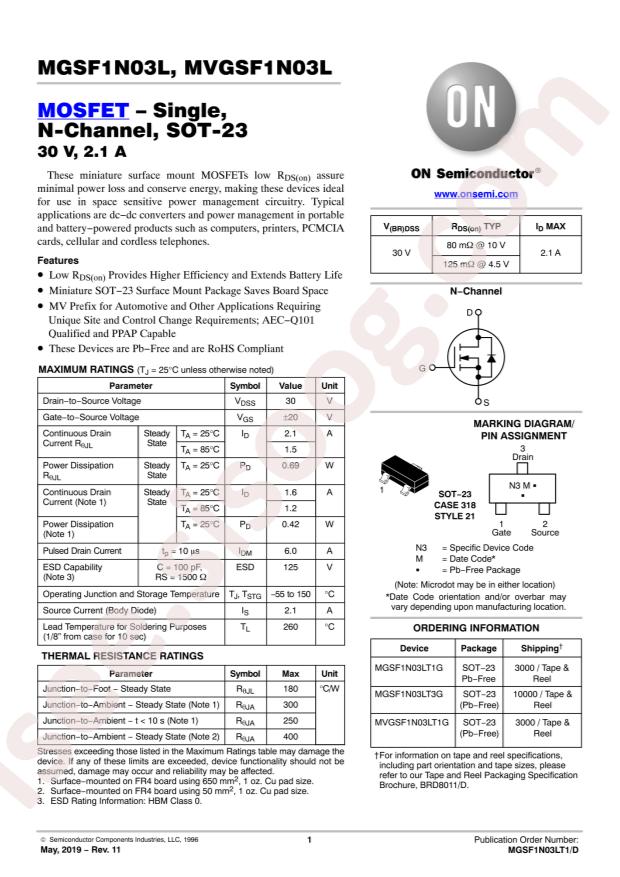

MGSF1N03L, MVGSF1N03L Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi MVGSF1N03LT1G
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 420mW
  • Total Gate Charge (Qg@Vgs): -
  • Drain Source Voltage (Vdss): 30V
  • Input Capacitance (Ciss@Vds): 140pF@5V
  • Continuous Drain Current (Id): 1.6A
  • Gate Threshold Voltage (Vgs(th)@Id): 2.4V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 100mΩ@1.2A,10V
  • Package: SOT-23
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Not For New Designs
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 30V
  • Current - Continuous Drain (Id) @ 25°C: 1.6A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 100mOhm @ 1.2A, 10V
  • Vgs(th) (Max) @ Id: 2.4V @ 250µA
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 140pF @ 5V
  • FET Feature: -
  • Power Dissipation (Max): 420mW (Ta)
  • Mounting Type: Surface Mount
  • Supplier Device Package: SOT-23
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Base Part Number: MVGSF
  • detail: N-Channel 30V 1.6A (Ta) 420mW (Ta) Surface Mount SOT-23
