دیتاشیت 2SB1203T-TL-E
مشخصات دیتاشیت
| نام دیتاشیت | 2SB1203/2SD1803 |
|---|---|
| حجم فایل | 392.926 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 10 |
دانلود دیتاشیت 2SB1203/2SD1803 |

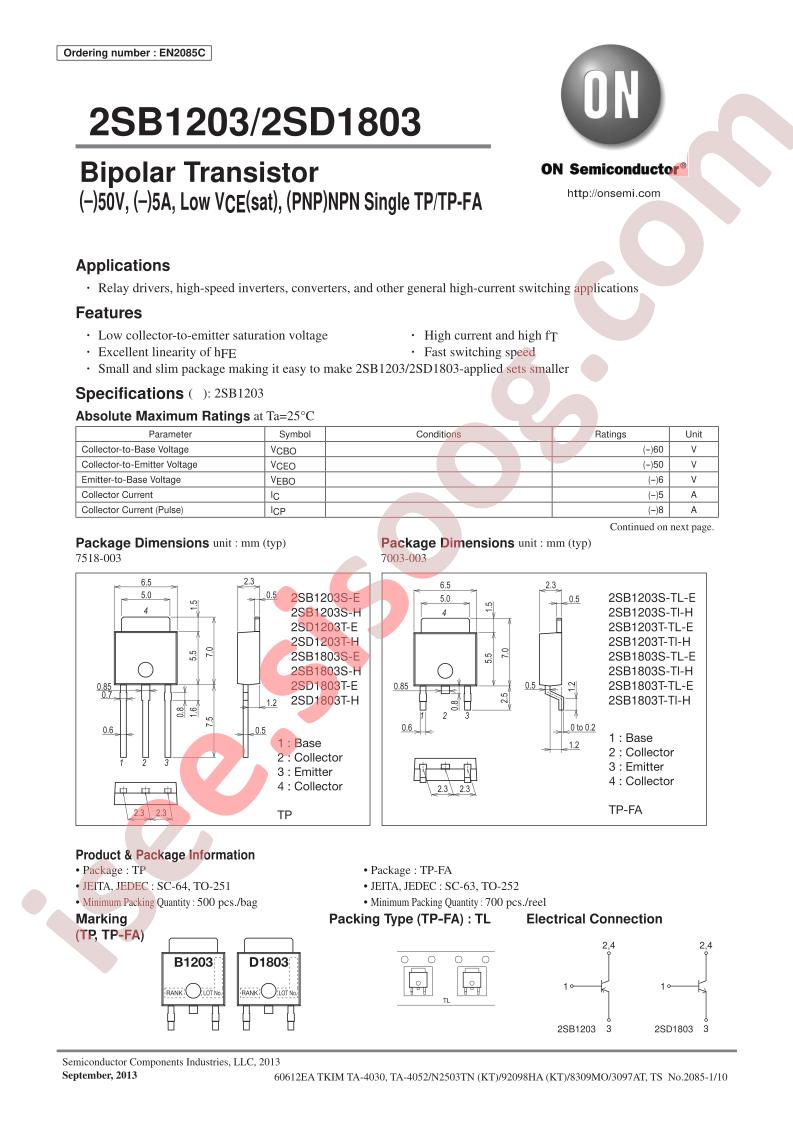

2SB1203/2SD1803 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet: onsemi 2SB1203T-TL-E
- Transistor Type: PNP
- Collector Current (Ic): 5A
- Power Dissipation (Pd): 1W
- Collector-Emitter Breakdown Voltage (Vceo): 50V
- Package: TO-252-3
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Current - Collector (Ic) (Max): 5A
- Voltage - Collector Emitter Breakdown (Max): 50V
- Vce Saturation (Max) @ Ib, Ic: 550mV @ 150mA, 3A
- Current - Collector Cutoff (Max): 1µA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 500mA, 2V
- Power - Max: 1W
- Frequency - Transition: 130MHz
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: 2-TP-FA
- Base Part Number: 2SB1203
- detail: Bipolar (BJT) Transistor PNP 50V 5A 130MHz 1W Surface Mount 2-TP-FA
