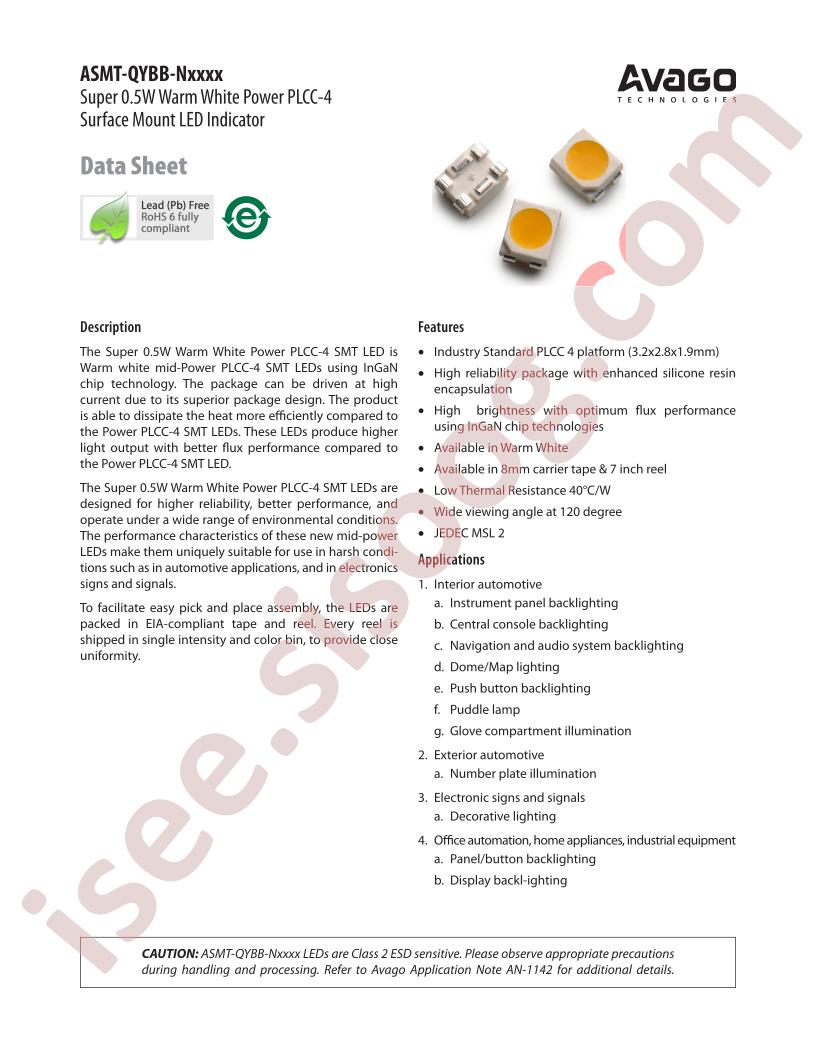

ASMT-QYBB-NGH0E 数据手册
其他文档
未找到其他文档！
技术规格
- Manufacturer: Broadcom Limited
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Obsolete
- Color: White, Warm
- CCT (K): 3650K (2500K ~ 4800K)
- Flux @ 85°C, Current - Test: 46lm
- Flux @ 25°C, Current - Test: 57lm (52lm ~ 62lm)
- Current - Test: 150mA
- Voltage - Forward (Vf) (Typ): 3.4V
- Lumens/Watt @ Current - Test: 112 lm/W
- CRI (Color Rendering Index): -
- Current - Max: 180mA
- Viewing Angle: 120°
- Mounting Type: Surface Mount
- Package / Case: 4-PLCC
- Supplier Device Package: 4-PLCC
- Size / Dimension: 0.126" L x 0.110" W (3.20mm x 2.80mm)
- Height - Seated (Max): 0.083" (2.10mm)
- Thermal Resistance of Package: 40°C/W
- Base Part Number: ASMT-Q*BB
- detail: LED Lighting - White, Warm 3650K (2500K ~ 4800K) 3.4V 150mA 120° 4-PLCC
