دیتاشیت TPS54202HDDCR

مشخصات دیتاشیت

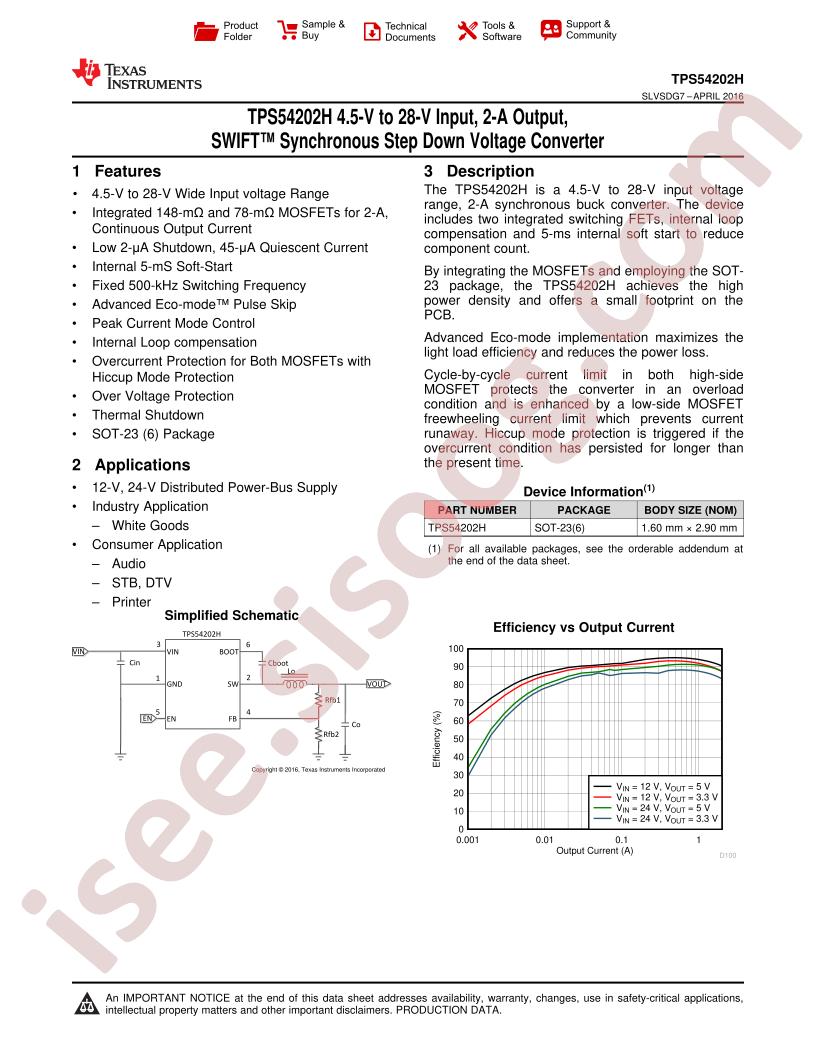

دانلود دیتاشیت TPS54202H Datasheet	TPS54202H Datasheet Datasheet

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Texas Instruments TPS54202HDDCR
Output Type: Adjustable
Input Voltage: 4.5V~28V
Output Voltage: 0.596V~28V
Number of Outputs: 1
Switching Frequency: 500kHz
Output Current (Max): 2A
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: Yes
Package: SOT-23-6
Manufacturer: Texas Instruments
Series: SWIFT™, Eco-Mode™
Supplier Device Package: TSOT-23-6
Voltage - Output (Min/Fixed): 0.596V
Voltage - Input (Min): 4.5V
Mounting Type: Surface Mount
Output Configuration: Positive
Package / Case: SOT-23-6 Thin, TSOT-23-6
Voltage - Output (Max): 28V
Synchronous Rectifier: Yes
Base Part Number: TPS542
Packaging: Cut Tape (CT)
Frequency - Switching: 500kHz
Current - Output: 2A
Voltage - Input (Max): 28V
Part Status: Active
detail: Buck Switching Regulator IC Positive Adjustable 0.596V 1 Output 2A SOT-23-6 Thin, TSOT-23-6
