دیتاشیت FGH60T65SQD-F155

FGH60T65SQD-F155

مشخصات دیتاشیت

نام دیتاشیت FGH60T65SQD-F155
حجم فایل 566.698 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

دانلود دیتاشیت FGH60T65SQD-F155

FGH60T65SQD-F155 Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • IGBT Type: Trench Field Stop
  • Voltage - Collector Emitter Breakdown (Max): 650V
  • Current - Collector (Ic) (Max): 120A
  • Current - Collector Pulsed (Icm): 240A
  • Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 60A
  • Power - Max: 333W
  • Switching Energy: 227µJ (on), 100µJ (off)
  • Input Type: Standard
  • Gate Charge: 79nC
  • Td (on/off) @ 25°C: 20.8ns/102ns
  • Test Condition: 400V, 15A, 4.7Ohm, 15V
  • Reverse Recovery Time (trr): 34.6ns
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Through Hole

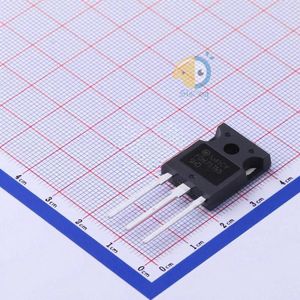

  • Package / Case: TO-247-3
  • Supplier Device Package: TO-247-3
  • Base Part Number: FGH60
  • detail: IGBT Trench Field Stop 650V 120A 333W Through Hole TO-247-3
