دیتاشیت FDP020N06B-F102

FDP020N06B_F102

مشخصات دیتاشیت

نام دیتاشیت FDP020N06B_F102
حجم فایل 797.641 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

دانلود دیتاشیت FDP020N06B_F102

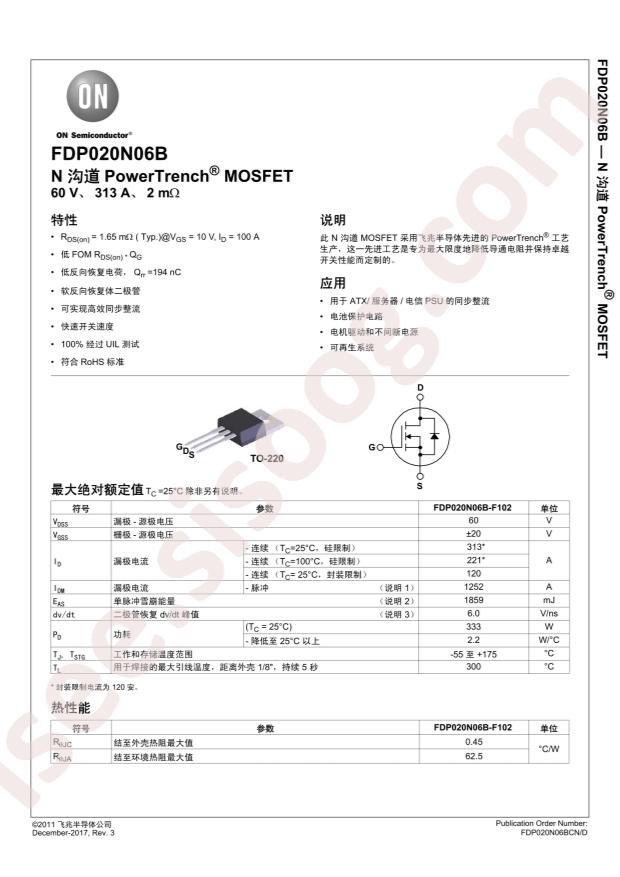

FDP020N06B_F102 Datasheet

مشخصات

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FDP020N06B-F102
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 333W
  • Total Gate Charge (Qg@Vgs): 206nC@10V
  • Drain Source Voltage (Vdss): 60V
  • Input Capacitance (Ciss@Vds): 16.1nF@30V
  • Continuous Drain Current (Id): 313A
  • Gate Threshold Voltage (Vgs(th)@Id): 3.3V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): 127pF@30V
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 1.65mΩ@10V,100A
  • Package: TO-220
  • Manufacturer: onsemi
  • Series: PowerTrench®
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 60V
  • Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 2mOhm @ 100A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 268nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 20930pF @ 30V
  • FET Feature: -
  • Power Dissipation (Max): 333W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220-3
  • Package / Case: TO-220-3
  • Base Part Number: FDP020
  • detail: N-Channel 60V 120A (Tc) 333W (Tc) Through Hole TO-220-3
