NGTB40N135IHRWG دیتاشیت

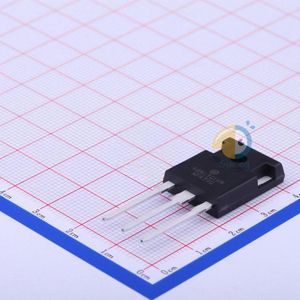

NGTB40N135IHRWG

مشخصات دیتاشیت

نام دیتاشیت NGTB40N135IHRWG
حجم فایل 86.276 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

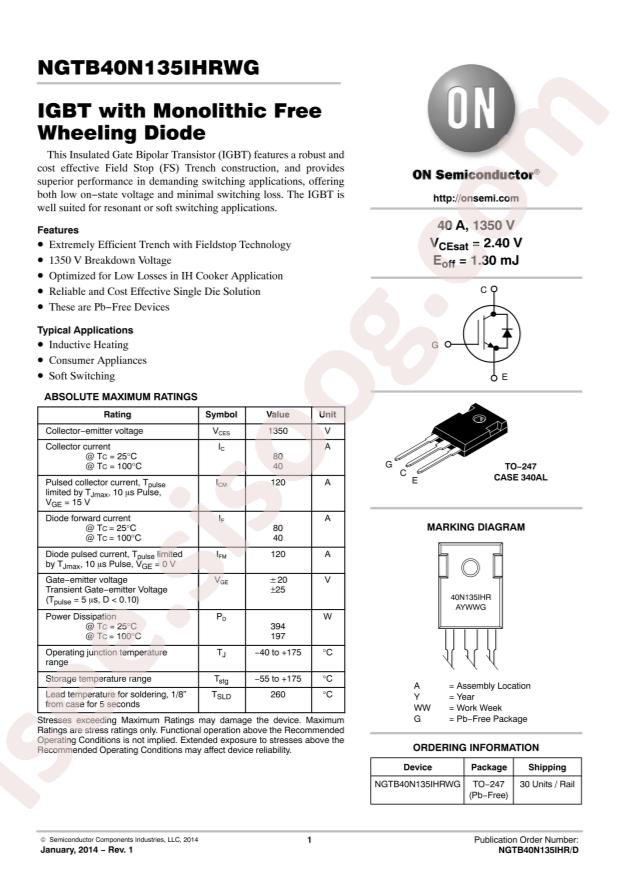

مشاهده دیتاشیت NGTB40N135IHRWG

دانلود دیتاشیت

سایر مستندات

NGTB40N135IHRWG 10 pages

مشخصات فنی

  • RoHS: true
  • Type: Trench Field Stop
  • Category: Triode/MOS Tube/Transistor/IGBTs
  • Datasheet: onsemi NGTB40N135IHRWG
  • Operating Temperature: -40°C~+175°C@(Tj)
  • Collector Current (Ic): 80A
  • Power Dissipation (Pd): 394W
  • Input Capacitance (Cies@Vce): -
  • Pulsed Collector Current (Icm): 120A
  • Turn?off Switching Loss (Eoff): 1.3mJ
  • Collector-Emitter Breakdown Voltage (Vces): 1350V
  • Gate-Emitter Threshold Voltage (Vge(th)@Ic): -
  • Package: TO-247
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • IGBT Type: Trench Field Stop
  • Voltage - Collector Emitter Breakdown (Max): 1350V
  • Current - Collector (Ic) (Max): 80A
  • Current - Collector Pulsed (Icm): 120A
  • Vce(on) (Max) @ Vge, Ic: 2.7V @ 15V, 40A
  • Power - Max: 394W
  • Switching Energy: 1.3mJ (off)
  • Input Type: Standard
  • Gate Charge: 234nC
  • Td (on/off) @ 25°C: -/250ns
  • Test Condition: 600V, 40A, 10Ohm, 15V
  • Mounting Type: Through Hole
  • Package / Case: TO-247-3
  • Supplier Device Package: TO-247
  • Base Part Number: NGTB40
  • detail: IGBT Trench Field Stop 1350V 80A 394W Through Hole TO-247
