NTHL065N65S3F دیتاشیت

NTHL065N65S3F

مشخصات دیتاشیت

نام دیتاشیت NTHL065N65S3F
حجم فایل 69.428 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

مشاهده دیتاشیت NTHL065N65S3F

دانلود دیتاشیت

سایر مستندات

NTHL065N65S3F 10 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi NTHL065N65S3F
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 337W
  • Total Gate Charge (Qg@Vgs): 98nC@10V
  • Drain Source Voltage (Vdss): 650V
  • Input Capacitance (Ciss@Vds): 4075pF@400V
  • Continuous Drain Current (Id): 46A
  • Gate Threshold Voltage (Vgs(th)@Id): 5V@4.6mA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 65mΩ@10V,23A

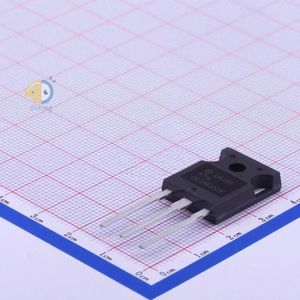

  • Package: TO-247-3
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 650V
  • Current - Continuous Drain (Id) @ 25°C: 46A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 65mOhm @ 23A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 4.6mA
  • Gate Charge (Qg) (Max) @ Vgs: 98nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 4075pF @ 400V
  • FET Feature: -
  • Power Dissipation (Max): 337W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-247-3
  • Package / Case: TO-247-3
  • Base Part Number: NTHL06
  • detail: N-Channel 650V 46A (Tc) 337W (Tc) Through Hole TO-247-3
