دیتاشیت FCH104N60F-F085
مشخصات دیتاشیت
| نام دیتاشیت | FCH104N60F-F085 |
|---|---|
| حجم فایل | 1022.07 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 8 |
دانلود دیتاشیت FCH104N60F-F085 |

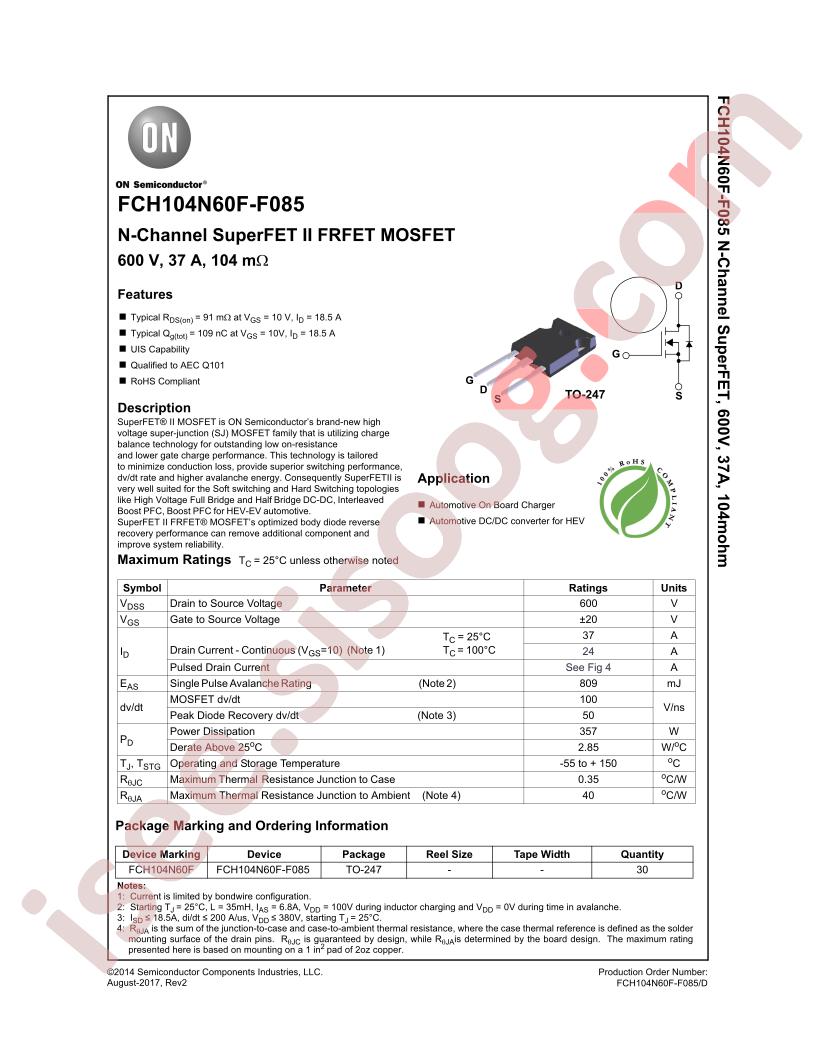

FCH104N60F-F085 Datasheet |
|---|
مشخصات
- Manufacturer: ON Semiconductor
- Series: Automotive, AEC-Q101, SuperFET® II
- Packaging: Tube
- Part Status: Not For New Designs
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600V
- Current - Continuous Drain (Id) @ 25°C: 37A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 104mOhm @ 18.5A, 10V
- Vgs(th) (Max) @ Id: 5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 139nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4302pF @ 100V
- FET Feature: -
- Power Dissipation (Max): 357W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-3
- Package / Case: TO-247-3
- Base Part Number: FCH10
- detail: N-Channel 600V 37A (Tc) 357W (Tc) Through Hole TO-247-3
