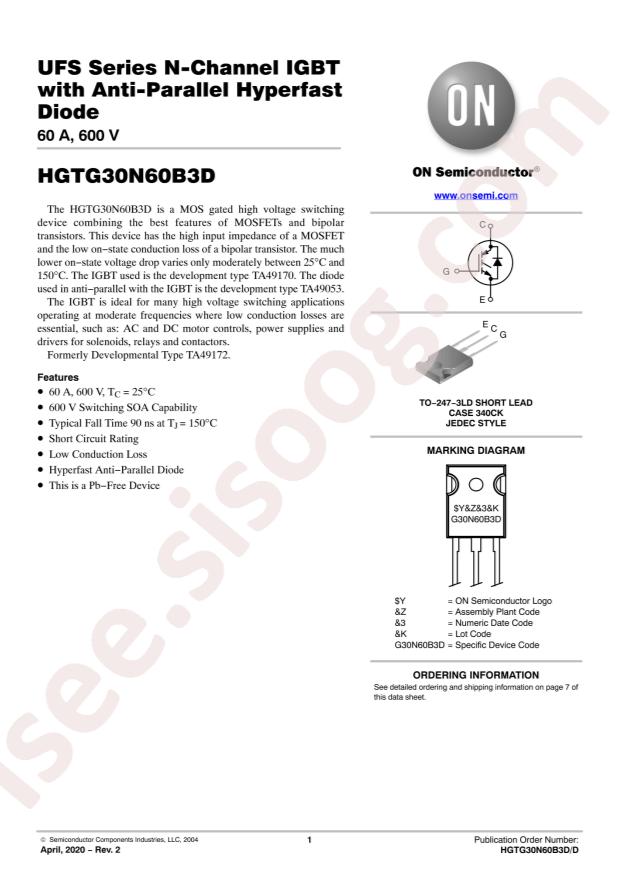

دیتاشیت HGTG30N60B3D
مشخصات دیتاشیت
| نام دیتاشیت |
HGTG30N60B3D
|
| حجم فایل |
66.55
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
9
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
onsemi HGTG30N60B3D
-
Package:
TO-247
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Not For New Designs
-
IGBT Type:
-
-
Voltage - Collector Emitter Breakdown (Max):
600V
-
Current - Collector (Ic) (Max):
60A
-
Current - Collector Pulsed (Icm):
220A
-
Vce(on) (Max) @ Vge, Ic:
1.9V @ 15V, 30A
-
Power - Max:
208W
-
Switching Energy:
550µJ (on), 680µJ (off)
-
Input Type:
Standard
-
Gate Charge:
170nC
-
Td (on/off) @ 25°C:
36ns/137ns
-
Test Condition:
480V, 30A, 3Ohm, 15V
-
Reverse Recovery Time (trr):
55ns
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247-3
-
Base Part Number:
HGTG30N60
-
detail:
IGBT 600V 60A 208W Through Hole TO-247-3
