- STK672-640AN-E

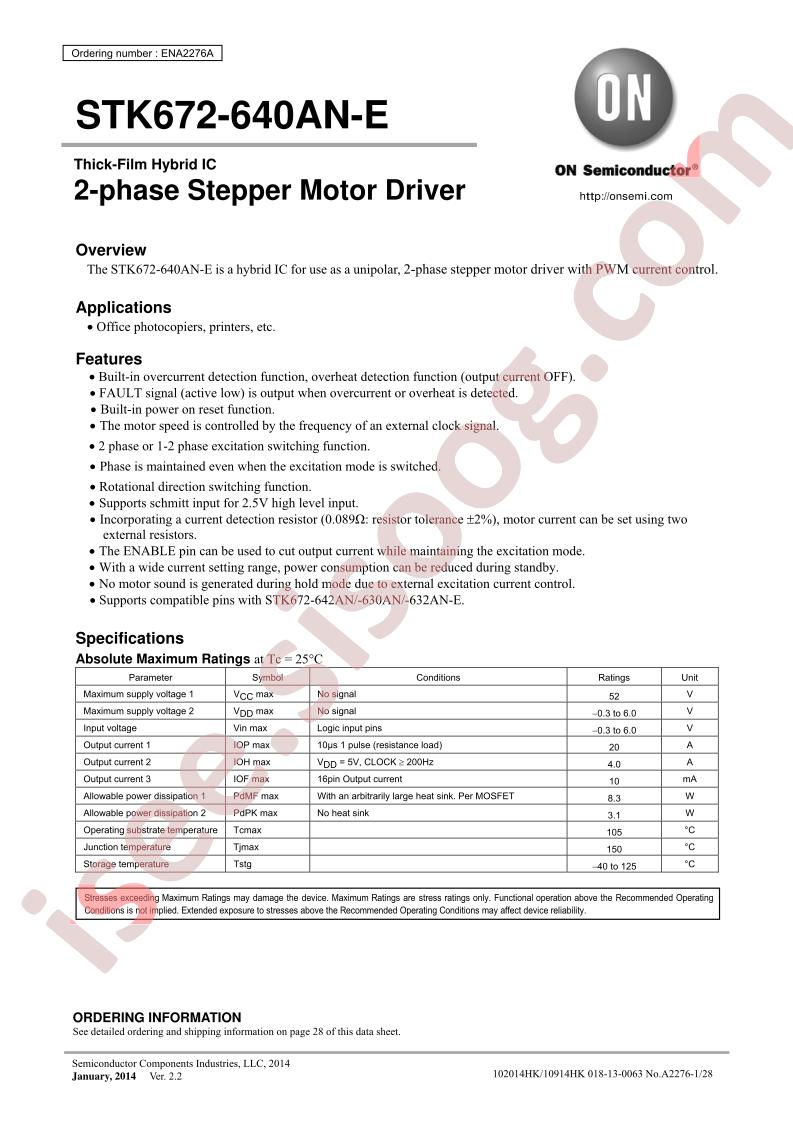

STK672-640AN-E Datasheet
Datasheet specifications
| Datasheet's name | STK672-640AN-E |
|---|---|
| File size | 466.382 KB |
| File type | |
| Number of pages | 28 |
Download Datasheet STK672-640AN-E |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- RoHS: true
- Category: Power Supply Chip/Motor Driver ICs
- Package: SIP-19
- Manufacturer: onsemi
- Series: -
- Packaging: Tube
- Part Status: Active
- Motor Type - Stepper: Unipolar
- Motor Type - AC, DC: -
- Function: Driver - Fully Integrated, Control and Power Stage
- Output Configuration: Half Bridge (2)
- Interface: Parallel
- Technology: Power MOSFET
- Step Resolution: 1, 1/2
- Applications: General Purpose
- Current - Output: 3.3A
- Voltage - Supply: 4.75V ~ 5.25V
- Voltage - Load: 0V ~ 42V
- Operating Temperature: 0°C ~ 105°C (TC)
- Mounting Type: Through Hole
- Package / Case: 19-SSIP Formed Leads
- Supplier Device Package: 19-SIP
- Base Part Number: STK672
- detail: Unipolar Motor Driver Power MOSFET Parallel 19-SIP
