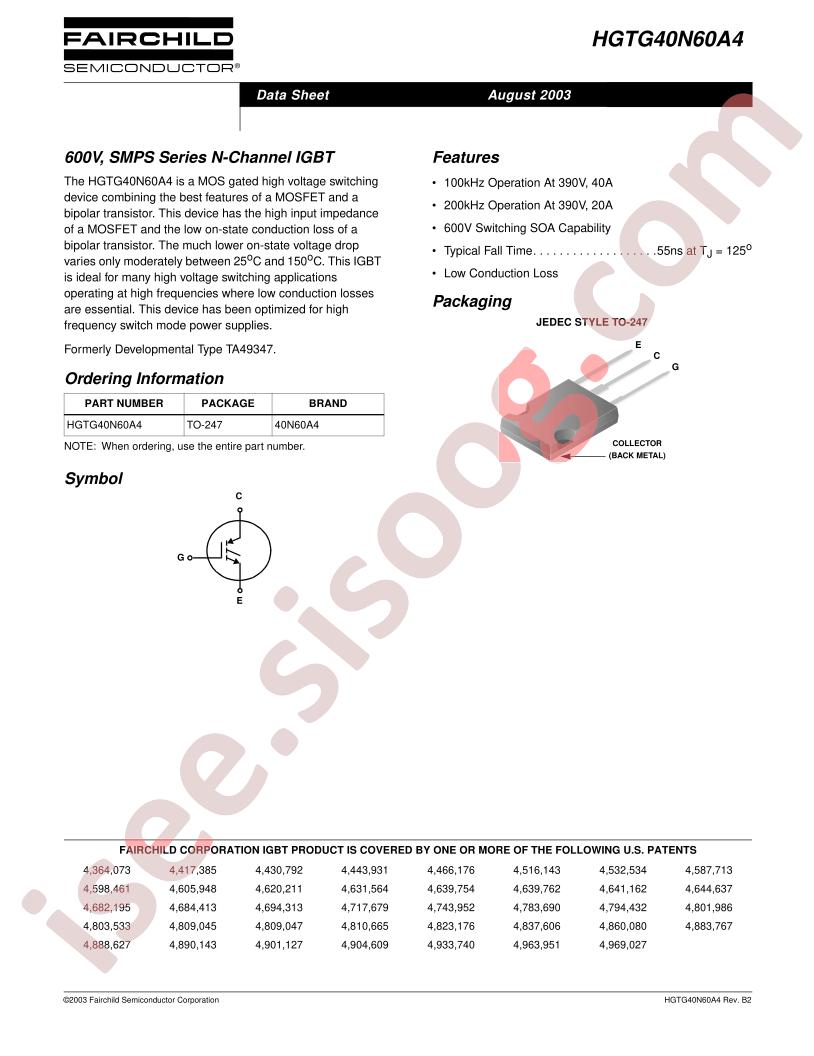

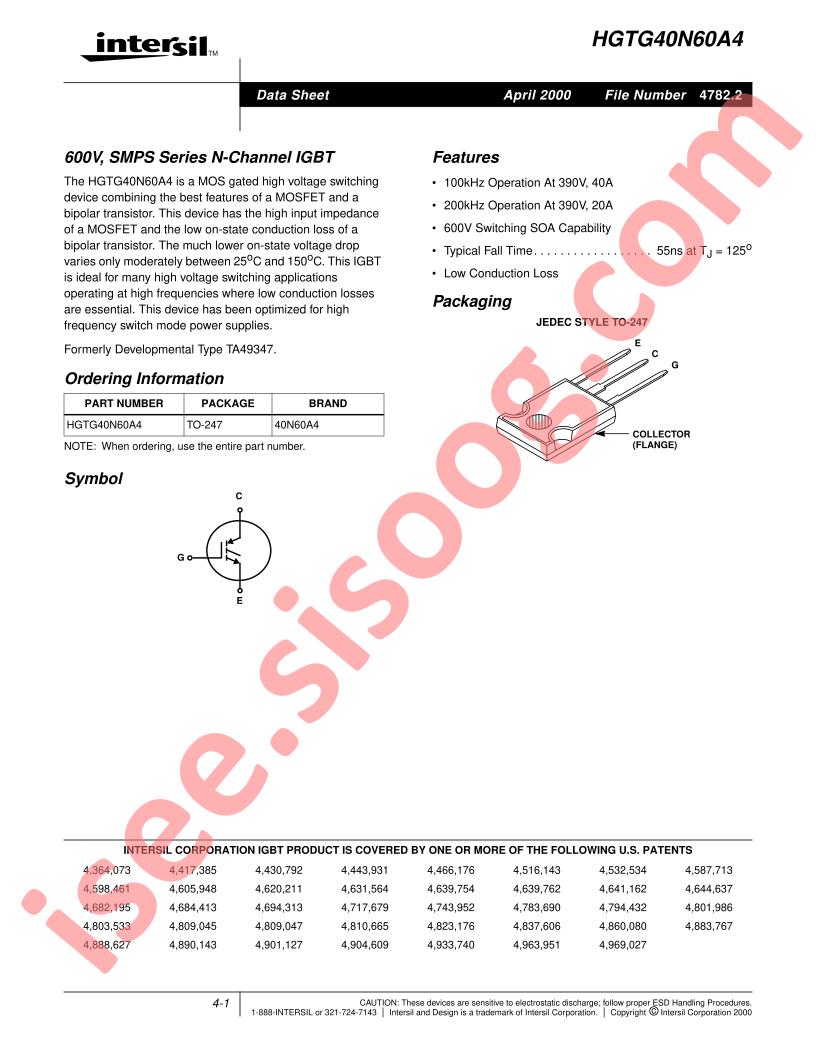

دیتاشیت HGTG40N60A4
مشخصات دیتاشیت
| نام دیتاشیت |
HGTG40N60A4
|
| حجم فایل |
180.982
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Not For New Designs
-
IGBT Type:
-
-
Voltage - Collector Emitter Breakdown (Max):
600V
-
Current - Collector (Ic) (Max):
75A
-
Current - Collector Pulsed (Icm):
300A
-
Vce(on) (Max) @ Vge, Ic:
2.7V @ 15V, 40A
-
Power - Max:
625W
-
Switching Energy:
400µJ (on), 370µJ (off)
-
Input Type:
Standard
-
Gate Charge:
350nC
-
Td (on/off) @ 25°C:
25ns/145ns
-
Test Condition:
390V, 40A, 2.2Ohm, 15V
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247-3
-
Base Part Number:
HGTG40N60
-
detail:
IGBT 600V 75A 625W Through Hole TO-247-3
