NCP3231AMNTXG دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت NCP3231AMNTXG	دانلود دیتاشیت

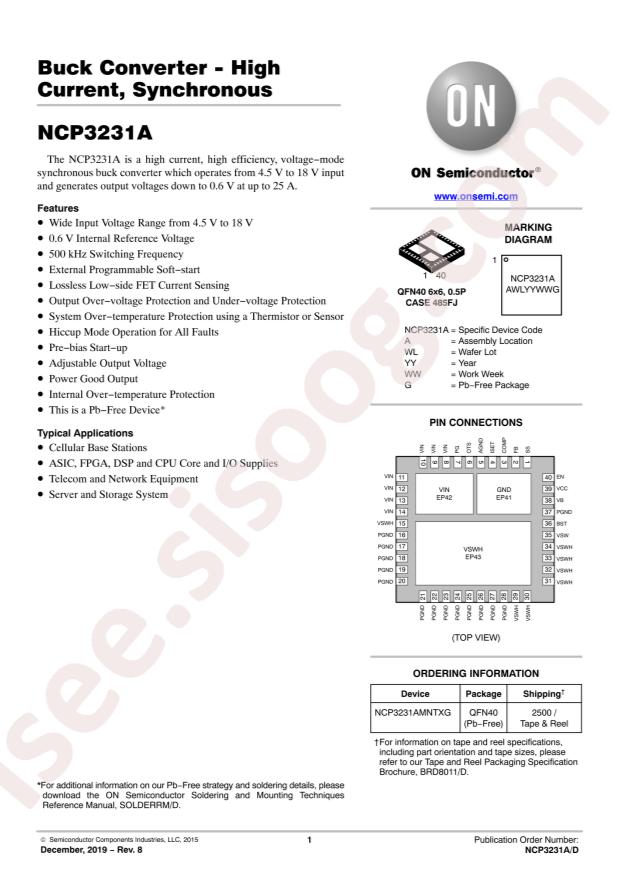

NCP3231A 14 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: onsemi NCP3231AMNTXG
Output Type: Adjustable
Input Voltage: 4.5V~18V
Output Voltage: 0.6V~16.56V
Number of Outputs: 1
Switching Frequency: 500kHz
Output Current (Max): 25A
Operating Temperature: -40°C~+90°C@(TA)
Synchronous Rectification: Yes
Package: QFN-40-EP(6x6)
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 4.5V
Voltage - Input (Max): 18V
Voltage - Output (Min/Fixed): 0.6V
Voltage - Output (Max): 16.56V
Current - Output: 25A
Frequency - Switching: 500kHz
Synchronous Rectifier: Yes
Mounting Type: Surface Mount
Package / Case: 40-VFQFN Exposed Pad
Supplier Device Package: 40-QFN (6x6)
Base Part Number: NCP3231
detail: Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 25A 40-VFQFN Exposed Pad
