- دیتاشیت NRVUB1620CTT4G
NRVUB1620CTT4G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | NRVUB1620CTT4G |
|---|---|
| حجم فایل | 82.399 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 6 |

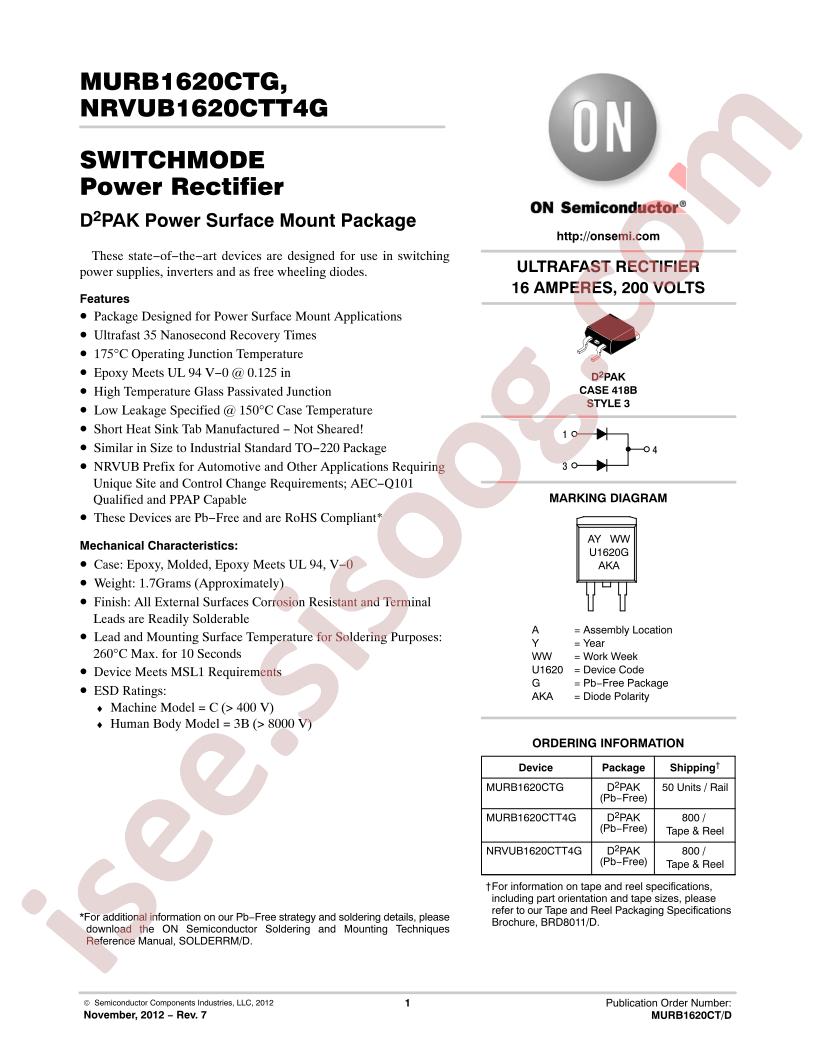

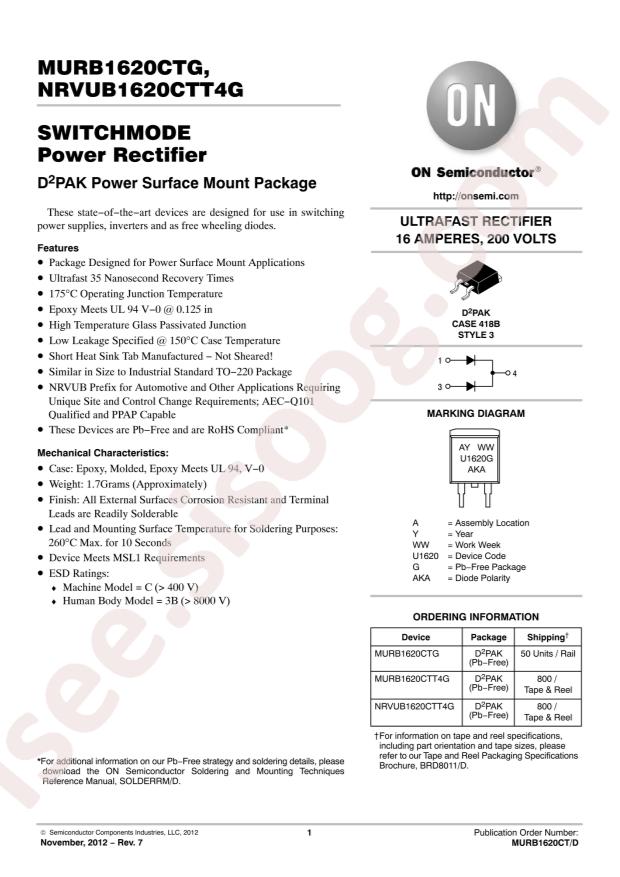

دانلود دیتاشیت NRVUB1620CTT4G |
دانلود دیتاشیت |
|---|
سایر مستندات
MURB1620CTG, NRVUB1620CTT4 5 pages
مشخصات فنی
- RoHS: true
- Category: Diodes/Diodes - Fast Recovery Rectifiers
- Datasheet: onsemi NRVUB1620CTT4G
- Package: D2PAK
- Manufacturer: onsemi
- Series: Automotive, AEC-Q101
- Packaging: Cut Tape (CT)
- Part Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 200V
- Current - Average Rectified (Io) (per Diode): 8A
- Voltage - Forward (Vf) (Max) @ If: 975mV @ 8A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 35ns
- Current - Reverse Leakage @ Vr: 5µA @ 200V
- Operating Temperature - Junction: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: D²PAK-3 (TO-263-3)
- Base Part Number: NRVUB16
- detail: Diode Array 1 Pair Common Cathode Standard 200V 8A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
