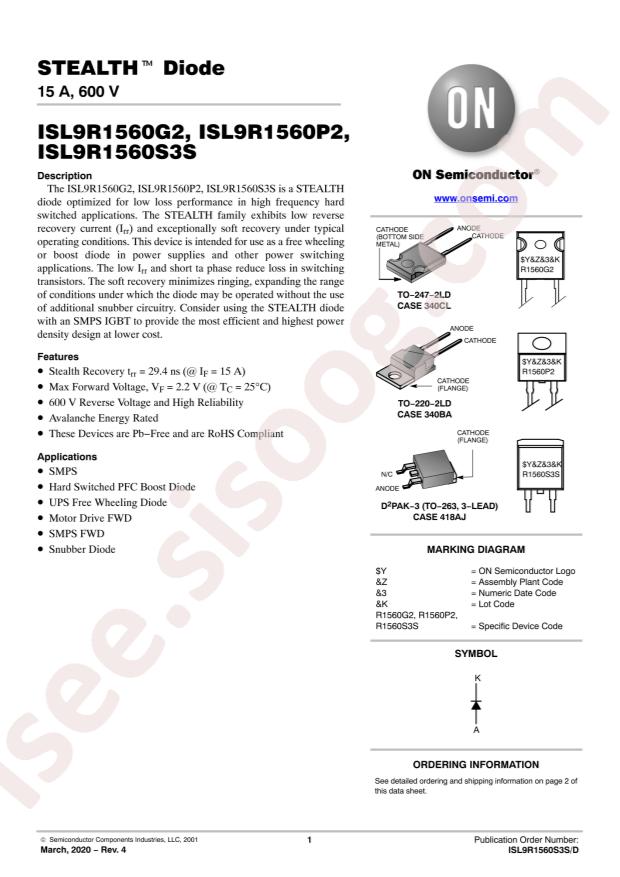

ISL9R1560G2 Datasheet

ISL9R1560G2

Datasheet specifications

Datasheet's name ISL9R1560G2
File size 74.831 KB
File type pdf
Number of pages 10

Download Datasheet ISL9R1560G2

Download Datasheet

Other documentations

ISL9R1560G2/P2/S2/S3S 12 pages

ISL9R1560G2 6 pages

Technical specifications

  • RoHS: true
  • Category: Diodes/Diodes - General Purpose
  • Datasheet: onsemi ISL9R1560G2
  • Diode Configuration: Single
  • Reverse Voltage (Vr): 600V
  • Forward Voltage (Vf@If): 1.8V@15A
  • Reverse Leakage Current: 100uA@600V
  • Average Rectified Current (Io): 15A
  • Package: TO-247
  • Manufacturer: onsemi
  • Series: Stealth™
  • Packaging: Tube
  • Part Status: Active
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 600V
  • Current - Average Rectified (Io): 15A
  • Voltage - Forward (Vf) (Max) @ If: 2.2V @ 15A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr): 40ns
  • Current - Reverse Leakage @ Vr: 100µA @ 600V
  • Capacitance @ Vr, F: -
  • Mounting Type: Through Hole
  • Package / Case: TO-247-2
  • Supplier Device Package: TO-247-2
  • Operating Temperature - Junction: -55°C ~ 175°C
  • Base Part Number: ISL9
  • detail: Diode Standard 600V 15A Through Hole TO-247-2
