RHRG1560CC دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
RHRG1560CC
|
|
حجم فایل
|
61.686
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Diodes - Fast Recovery Rectifiers
-
Datasheet:
onsemi RHRG1560CC
-

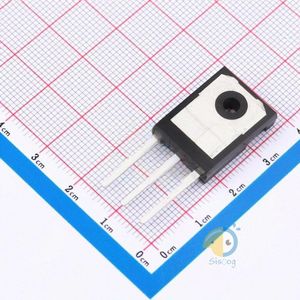

Package:
TO-247-3L
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Diode Configuration:
1 Pair Common Cathode
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
600V
-
Current - Average Rectified (Io) (per Diode):
15A
-
Voltage - Forward (Vf) (Max) @ If:
2.1V @ 15A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Reverse Recovery Time (trr):
40ns
-
Current - Reverse Leakage @ Vr:
100µA @ 600V
-
Operating Temperature - Junction:
-65°C ~ 175°C
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247-3
-
Base Part Number:
RHRG15
-
detail:
Diode Array 1 Pair Common Cathode Standard 600V 15A Through Hole TO-247-3
