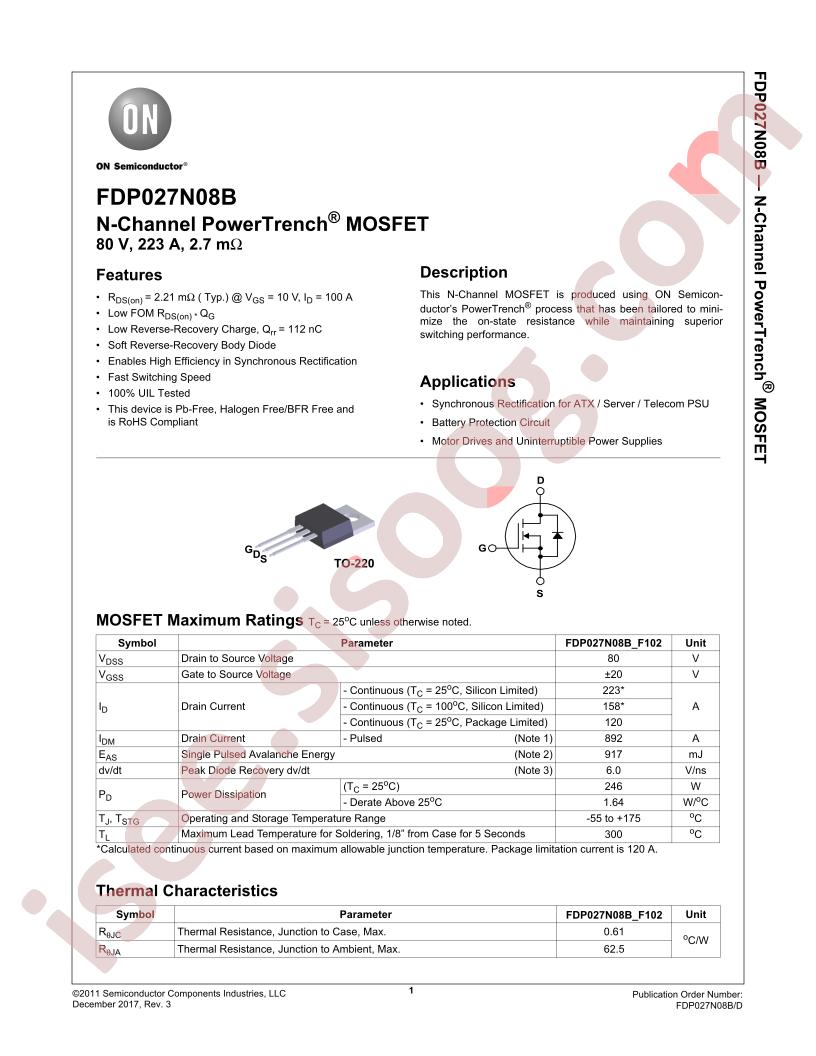

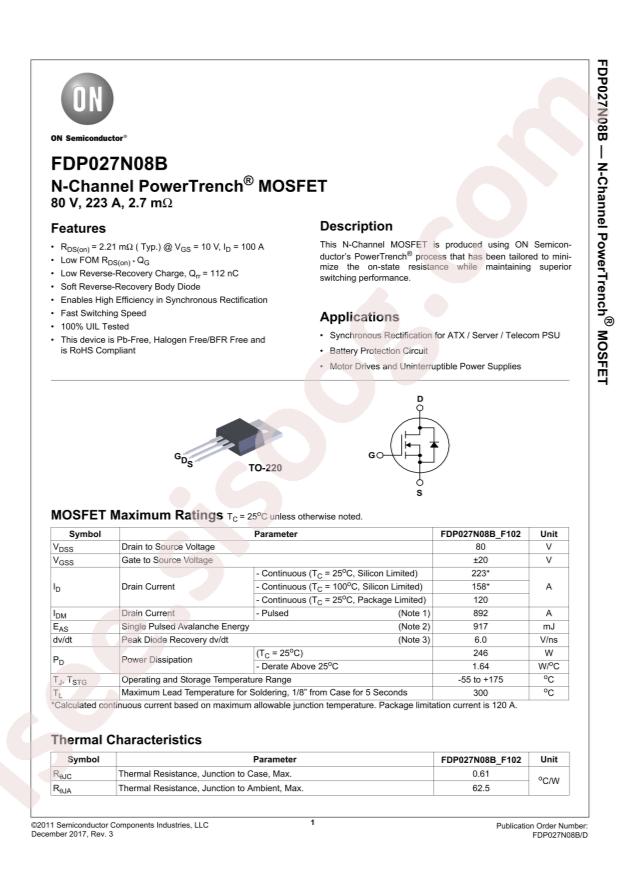

FDP027N08B-F102 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FDP027N08B-F102
|
|
حجم فایل
|
75.688
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FDP027N08B-F102
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
246W
-
Total Gate Charge (Qg@Vgs):
178nC@10V
-
Drain Source Voltage (Vdss):
80V
-
Input Capacitance (Ciss@Vds):
13530pF@40V
-
Continuous Drain Current (Id):
223A
-
Gate Threshold Voltage (Vgs(th)@Id):
4.5V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
2.7mΩ@10V,100A
-
Package:
TO-220
-
Manufacturer:
onsemi
-
Series:
PowerTrench®
-
Packaging:
Tube
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
80V
-
Current - Continuous Drain (Id) @ 25°C:
120A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
2.7mOhm @ 100A, 10V
-
Vgs(th) (Max) @ Id:
4.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
178nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
13530pF @ 40V
-
FET Feature:
-
-
Power Dissipation (Max):
246W (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220-3
-
Package / Case:
TO-220-3
-
Base Part Number:
FDP027
-
detail:
N-Channel 80V 120A (Tc) 246W (Tc) Through Hole TO-220-3
