EMH2418R-TL-H دیتاشیت

مشخصات دیتاشیت

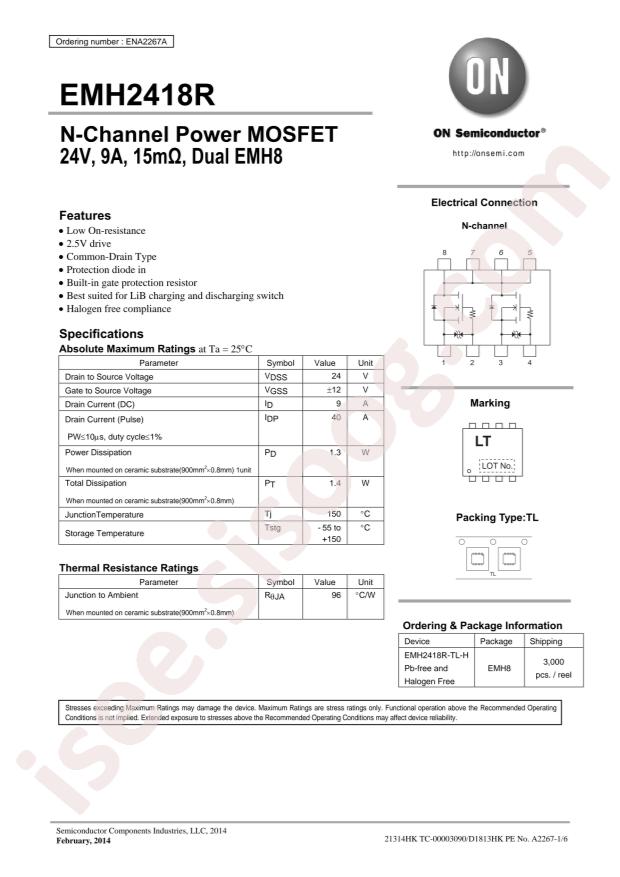

مشاهده دیتاشیت EMH2418R-TL-H	دانلود دیتاشیت

RoHS: true
Type: -
Category: Triode/MOS Tube/Transistor/MOSFETs
Datasheet: onsemi EMH2418R-TL-H
Power Dissipation (Pd): 1.3W
Total Gate Charge (Qg@Vgs): 4.4nC@4.5V
Drain Source Voltage (Vdss): 24V
Input Capacitance (Ciss@Vds): -
Continuous Drain Current (Id): 9A
Gate Threshold Voltage (Vgs(th)@Id): 1.3V@1mA
Reverse Transfer Capacitance (Crss@Vds): -
Drain Source On Resistance (RDS(on)@Vgs,Id): 15mΩ@4A,4.5V
Package: SOT-383FL
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
FET Type: 2 N-Channel (Dual) Common Drain
FET Feature: Logic Level Gate, 2.5V Drive
Drain to Source Voltage (Vdss): 24V
Current - Continuous Drain (Id) @ 25°C: 9A
Rds On (Max) @ Id, Vgs: 15mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id: 1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs: 4.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds: -
Power - Max: 1.3W
Operating Temperature: 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: 8-SMD, Flat Lead
Supplier Device Package: SOT-383FL, EMH8
Base Part Number: EMH2418
detail: Mosfet Array 2 N-Channel (Dual) Common Drain 24V 9A 1.3W Surface Mount SOT-383FL, EMH8
