دیتاشیت 2SD1620-TD-E

2SD1620

مشخصات دیتاشیت

نام دیتاشیت 2SD1620
حجم فایل 290.98 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت 2SD1620

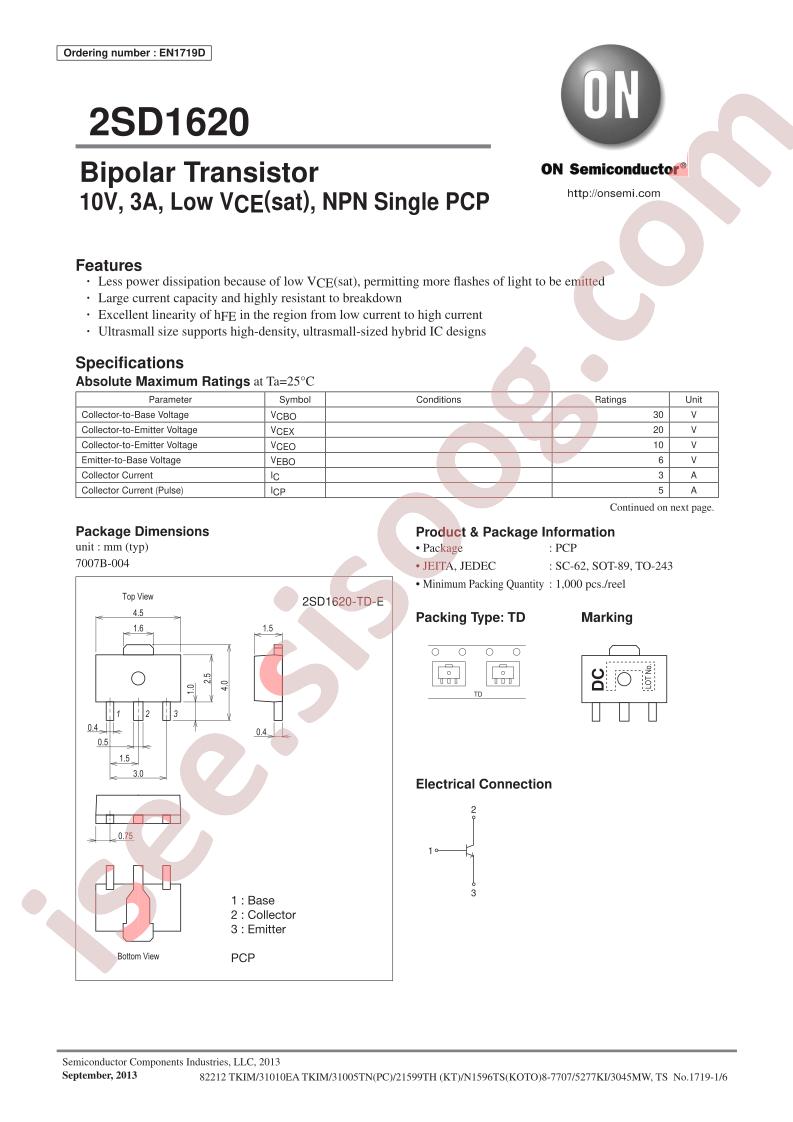

2SD1620 Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: onsemi 2SD1620-TD-E
  • Transistor Type: NPN
  • Operating Temperature: +150°C@(Tj)
  • Collector Current (Ic): 3A
  • Power Dissipation (Pd): 500mW
  • Transition Frequency (fT): 200MHz
  • DC Current Gain (hFE@Ic,Vce): 140@3A,2V
  • Collector Cut-Off Current (Icbo): 100nA
  • Collector-Emitter Breakdown Voltage (Vceo): 10V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 300mV@3A,60mA
  • Package: SOT-89
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Current - Collector (Ic) (Max): 3A
  • Voltage - Collector Emitter Breakdown (Max): 10V
  • Vce Saturation (Max) @ Ib, Ic: 400mV @ 60mA, 3A
  • Current - Collector Cutoff (Max): 100nA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 140 @ 3A, 2V
  • Power - Max: 500mW
  • Frequency - Transition: 200MHz
  • Mounting Type: Surface Mount
  • Package / Case: TO-243AA
  • Supplier Device Package: PCP
  • Base Part Number: 2SD1620
  • detail: Bipolar (BJT) Transistor NPN 10V 3A 200MHz 500mW Surface Mount PCP
