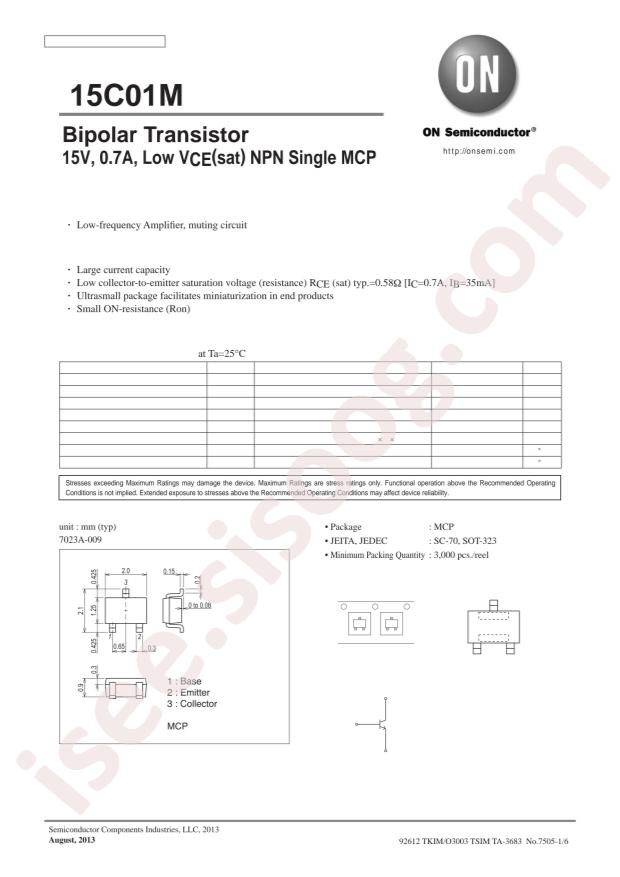

15C01M-TL-E دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
15C01M-TL-E
|
|
حجم فایل
|
52.247
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi 15C01M-TL-E
-
Transistor Type:
NPN
-
Collector Current (Ic):
700mA
-
Power Dissipation (Pd):
300mW
-
Transition Frequency (fT):
330MHz
-
DC Current Gain (hFE@Ic,Vce):
300@10mA,2V
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Breakdown Voltage (Vceo):
15V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
300mV@10mA,200mA
-
Package:
SC-70-3
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
700mA
-
Voltage - Collector Emitter Breakdown (Max):
15V
-
Vce Saturation (Max) @ Ib, Ic:
300mV @ 10mA, 200mA
-
Current - Collector Cutoff (Max):
100nA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
300 @ 10mA, 2V
-
Power - Max:
300mW
-
Frequency - Transition:
330MHz
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
SC-70, SOT-323
-
Supplier Device Package:
3-MCP
-
Base Part Number:
15C01
-
detail:
Bipolar (BJT) Transistor NPN 15V 700mA 330MHz 300mW Surface Mount 3-MCP
