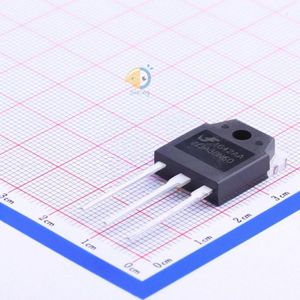

FGA30N60LSDTU دیتاشیت

FGA30N60LSDTU

مشخصات دیتاشیت

نام دیتاشیت FGA30N60LSDTU
حجم فایل 70.016 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

مشاهده دیتاشیت FGA30N60LSDTU

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • Type: Trench Field Stop
  • Category: Triode/MOS Tube/Transistor/IGBTs
  • Datasheet: onsemi FGA30N60LSDTU
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Collector Current (Ic): 60A
  • Power Dissipation (Pd): 480W
  • Input Capacitance (Cies@Vce): -
  • Turn?on Switching Loss (Eon): 1.1mJ
  • Pulsed Collector Current (Icm): 90A
  • Turn?off Switching Loss (Eoff): 21mJ
  • Diode Reverse Recovery Time (Trr): 35ns
  • Collector-Emitter Breakdown Voltage (Vces): 600V
  • Gate-Emitter Threshold Voltage (Vge(th)@Ic): -
  • Package: TO-3P
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • IGBT Type: Trench Field Stop
  • Voltage - Collector Emitter Breakdown (Max): 600V
  • Current - Collector (Ic) (Max): 60A
  • Current - Collector Pulsed (Icm): 90A
  • Vce(on) (Max) @ Vge, Ic: 1.4V @ 15V, 30A
  • Power - Max: 480W
  • Switching Energy: 1.1mJ (on), 21mJ (off)
  • Input Type: Standard
  • Gate Charge: 225nC
  • Td (on/off) @ 25°C: 18ns/250ns
  • Test Condition: 400V, 30A, 6.8Ohm, 15V
  • Reverse Recovery Time (trr): 35ns
  • Mounting Type: Through Hole
  • Package / Case: TO-3P-3, SC-65-3
  • Supplier Device Package: TO-3P
  • Base Part Number: FGA30
  • detail: IGBT Trench Field Stop 600V 60A 480W Through Hole TO-3P
