FGL40N120ANTU دیتاشیت

FGL40N120ANTU

مشخصات دیتاشیت

نام دیتاشیت FGL40N120ANTU
حجم فایل 66.539 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

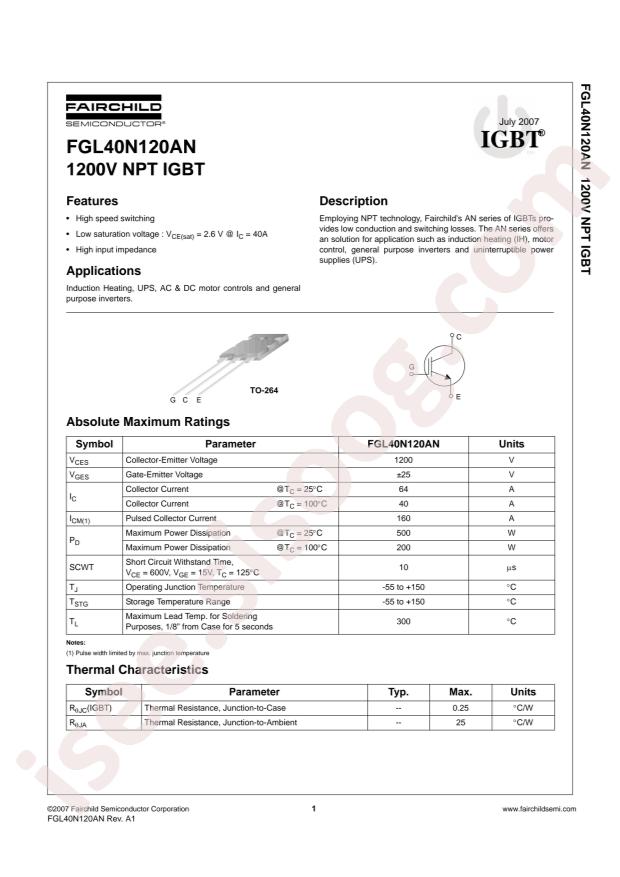

مشاهده دیتاشیت FGL40N120ANTU

دانلود دیتاشیت

سایر مستندات

FGL40N120AN 7 pages

مشخصات فنی

  • RoHS: true
  • Type: NPT
  • Category: Triode/MOS Tube/Transistor/IGBTs
  • Datasheet: onsemi FGL40N120ANTU
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Collector Current (Ic): 64A
  • Power Dissipation (Pd): 500W
  • Turn?on Delay Time (Td(on)): 15ns
  • Turn?on Switching Loss (Eon): 2.3mJ
  • Total Gate Charge (Qg@Ic,Vge): 220nC
  • Turn?off Delay Time (Td(off)): 110ns
  • Pulsed Collector Current (Icm): 160A
  • Turn?off Switching Loss (Eoff): 1.1mJ
  • Collector-Emitter Breakdown Voltage (Vces): 1200V
  • Gate-Emitter Threshold Voltage (Vge(th)@Ic): 3.2V@15V,40A
  • Package: TO-264-3
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tube
  • Part Status: Not For New Designs
  • IGBT Type: NPT
  • Voltage - Collector Emitter Breakdown (Max): 1200V
  • Current - Collector (Ic) (Max): 64A
  • Current - Collector Pulsed (Icm): 160A
  • Vce(on) (Max) @ Vge, Ic: 3.2V @ 15V, 40A
  • Power - Max: 500W
  • Switching Energy: 2.3mJ (on), 1.1mJ (off)
  • Input Type: Standard
  • Gate Charge: 220nC
  • Td (on/off) @ 25°C: 15ns/110ns
  • Test Condition: 600V, 40A, 5Ohm, 15V
  • Mounting Type: Through Hole
  • Package / Case: TO-264-3, TO-264AA
  • Supplier Device Package: TO-264-3
  • Base Part Number: FGL4
  • detail: IGBT NPT 1200V 64A 500W Through Hole TO-264-3
