NVMFS6D1N08HT1G دیتاشیت

NVMFS6D1N08HT1G

مشخصات دیتاشیت

نام دیتاشیت NVMFS6D1N08HT1G
حجم فایل 86.11 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

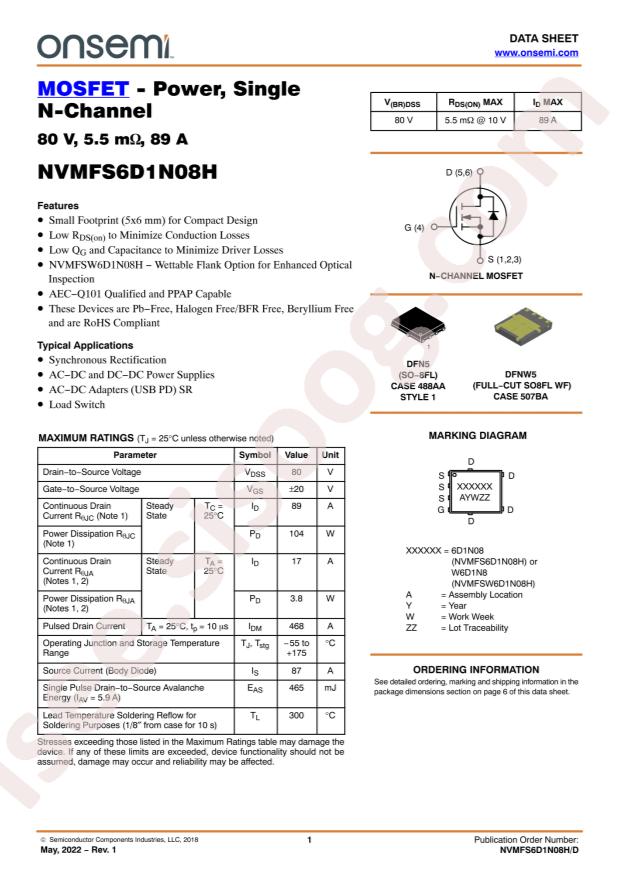

مشاهده دیتاشیت NVMFS6D1N08HT1G

دانلود دیتاشیت

سایر مستندات

NVMFS6D1N08H 7 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi NVMFS6D1N08HT1G
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 104W
  • Total Gate Charge (Qg@Vgs): 10nC@6V
  • Drain Source Voltage (Vdss): 80V
  • Input Capacitance (Ciss@Vds): 2.085nF@40V
  • Continuous Drain Current (Id): 89A
  • Gate Threshold Voltage (Vgs(th)@Id): 4V@120uA
  • Reverse Transfer Capacitance (Crss@Vds): 10pF@40V
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 4.5mΩ@10V,20A
  • Package: DFN-5(5.9x4.9)
  • Manufacturer: onsemi
  • Series: *
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Supplier Device Package: 5-DFN (5x6) (8-SOFL)
  • Package / Case: 8-PowerTDFN, 5 Leads
  • Base Part Number: NVMFS6
  • detail: Surface Mount 5-DFN (5x6) (8-SOFL)
