CS5124XDR8G دیتاشیت

مشخصات دیتاشیت

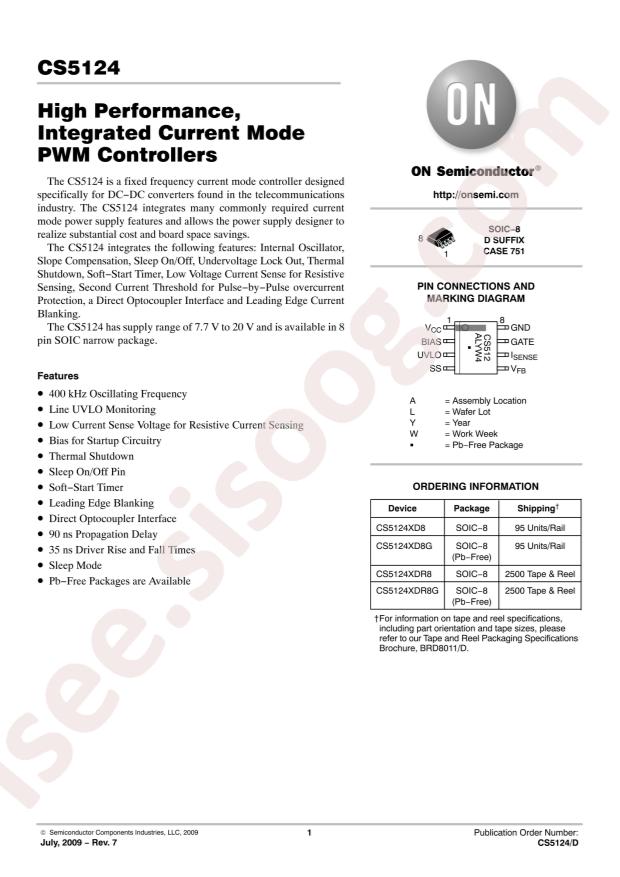

مشاهده دیتاشیت CS5124XDR8G	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Function: Buck-boost type
Topology: Flyback
Datasheet: onsemi CS5124XDR8G
Input Voltage: 7.7V~20V
Duty Cycle (Max): 82.5%
Number of Outputs: 1
Switching Frequency: 400kHz
Operating Temperature: -40°C~+105°C@(TA)
Synchronous Rectification: NO

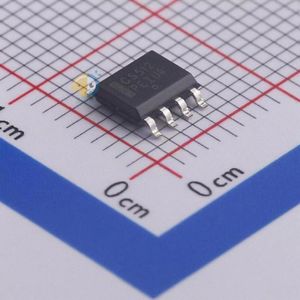

Package: SOP-8
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Obsolete
Output Type: Transistor Driver
Output Configuration: Positive, Isolation Capable
Output Phases: 1
Voltage - Supply (Vcc/Vdd): 7.7V ~ 20V
Frequency - Switching: 400kHz
Synchronous Rectifier: No
Clock Sync: No
Serial Interfaces: -
Control Features: Soft Start
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SOIC
Base Part Number: CS5124
detail: Flyback, Forward Converter Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 8-SOIC
