FODM8061R2V دیتاشیت

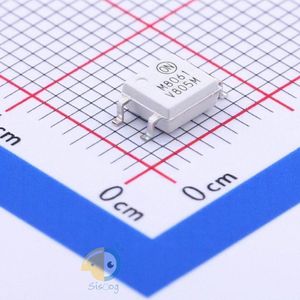

FODM8061R2V

مشخصات دیتاشیت

نام دیتاشیت FODM8061R2V
حجم فایل 70.016 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

مشاهده دیتاشیت FODM8061R2V

دانلود دیتاشیت

سایر مستندات

FODM8061 13 pages

مشخصات فنی

  • RoHS: true
  • Category: Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Logic Output
  • Datasheet: onsemi FODM8061R2V
  • Input Type: DC
  • Supply Voltage: 3V~5.5V
  • Number of Channels: 1
  • Operating Temperature: -40°C~+110°C
  • Isolation Voltage(rms): 3750V
  • Propagation Delay tpLH/tpHL: 80ns
  • Common Mode Transient Immunity (CMTI): 20kV/us
  • Package: SOIC-5
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Inputs - Side 1/Side 2: 1/0
  • Voltage - Isolation: 3750Vrms
  • Common Mode Transient Immunity (Min): 20kV/µs
  • Output Type: Open Collector, Schottky Clamped
  • Current - Output / Channel: 50mA
  • Data Rate: 10Mbps
  • Propagation Delay tpLH / tpHL (Max): 80ns, 80ns
  • Rise / Fall Time (Typ): 20ns, 10ns
  • Voltage - Forward (Vf) (Typ): 1.45V
  • Current - DC Forward (If) (Max): 50mA
  • Voltage - Supply: 3V ~ 5.5V
  • Mounting Type: Surface Mount
  • Package / Case: 6-SOIC (0.173", 4.40mm Width), 5 Leads
  • Supplier Device Package: 5-Mini-Flat
  • Base Part Number: FODM80
  • detail: Logic Output Optoisolator 10Mbps Open Collector, Schottky Clamped 3750Vrms 1 Channel 20kV/µs CMTI 5-Mini-Flat
