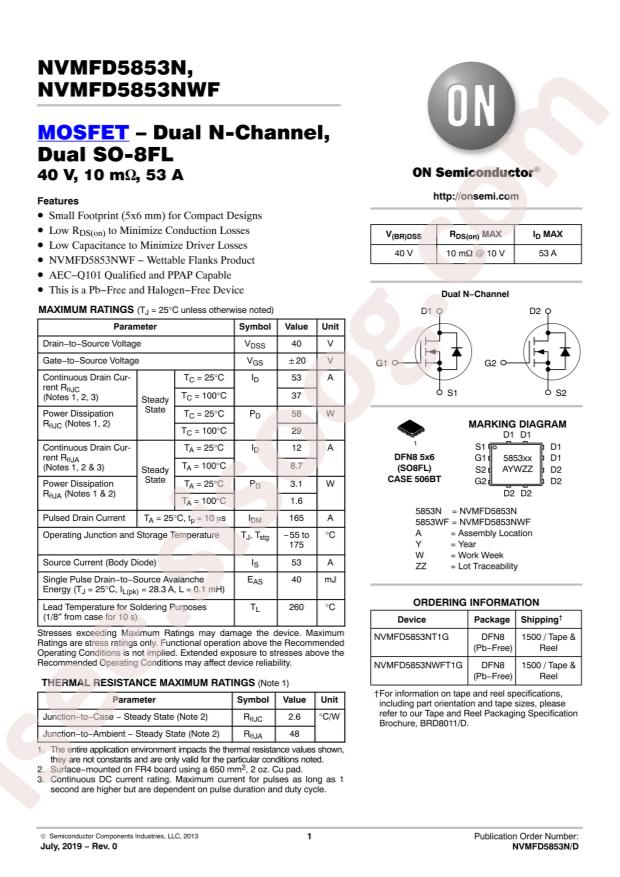

NVMFD5853NT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NVMFD5853NT1G
|
|
حجم فایل
|
102.117
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Type:
2 N-Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NVMFD5853NT1G
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
58W
-
Total Gate Charge (Qg@Vgs):
24nC@10V
-
Drain Source Voltage (Vdss):
40V
-
Input Capacitance (Ciss@Vds):
1.225nF@25V
-
Continuous Drain Current (Id):
53A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
100pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
8.4mΩ@10V,15A
-
Package:
DFN-8(5x6)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Not For New Designs
-
FET Type:
2 N-Channel (Dual)
-
FET Feature:
Logic Level Gate
-
Drain to Source Voltage (Vdss):
40V
-
Current - Continuous Drain (Id) @ 25°C:
12A
-
Rds On (Max) @ Id, Vgs:
10mOhm @ 15A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
24nC @ 10V
-
Input Capacitance (Ciss) (Max) @ Vds:
1225pF @ 25V
-
Power - Max:
3.1W
-
Mounting Type:
Surface Mount
-
Package / Case:
8-PowerTDFN
-
Supplier Device Package:
8-DFN (5x6) Dual Flag (SO8FL-Dual)
-
Base Part Number:
NVMFD5
-
detail:
Mosfet Array 2 N-Channel (Dual) 40V 12A 3.1W Surface Mount 8-DFN (5x6) Dual Flag (SO8FL-Dual)
