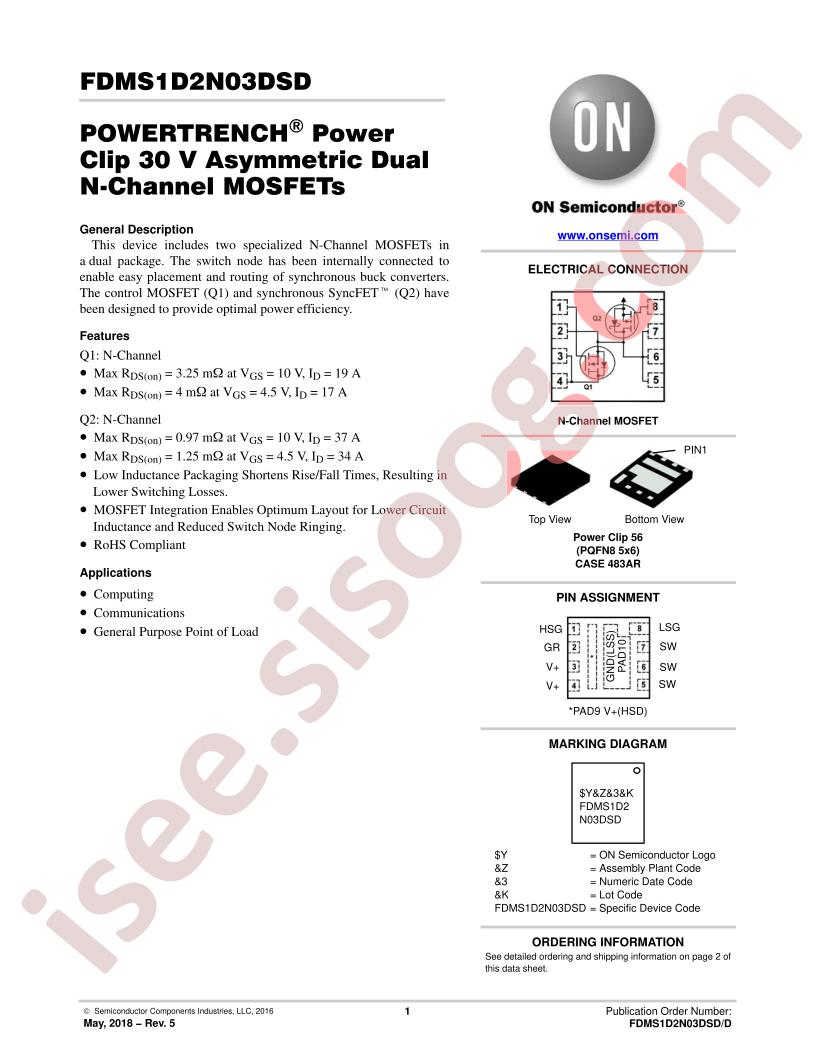

FDMS1D2N03DSD دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت FDMS1D2N03DSD	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Manufacturer: ON Semiconductor
Series: PowerTrench®
Packaging: Cut Tape (CT)
Part Status: Active
FET Type: 2 N-Channel (Dual) Asymmetrical
FET Feature: Standard
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 19A (Ta), 70A (Tc), 37A (Ta), 164A (Tc)
Rds On (Max) @ Id, Vgs: 3.25mOhm @ 19A, 10V, 0.97mOhm @ 37A, 10V
Vgs(th) (Max) @ Id: 2.5V @ 320µA, 3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs: 33nC @ 10V, 117nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 1410pF @ 15V, 4860pF @ 15V
Power - Max: 2.1W (Ta), 26W (Tc), 2.3W (Ta), 42W (Tc)
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: 8-PowerWDFN
Supplier Device Package: 8-PQFN (5x6)
Base Part Number: FDMS1
detail: Mosfet Array 2 N-Channel (Dual) Asymmetrical 30V 19A (Ta), 70A (Tc), 37A (Ta), 164A (Tc) 2.1W (Ta), 26W (Tc), 2.3W (Ta), 42W (Tc) Surface Mount 8-PQFN (5x6)
