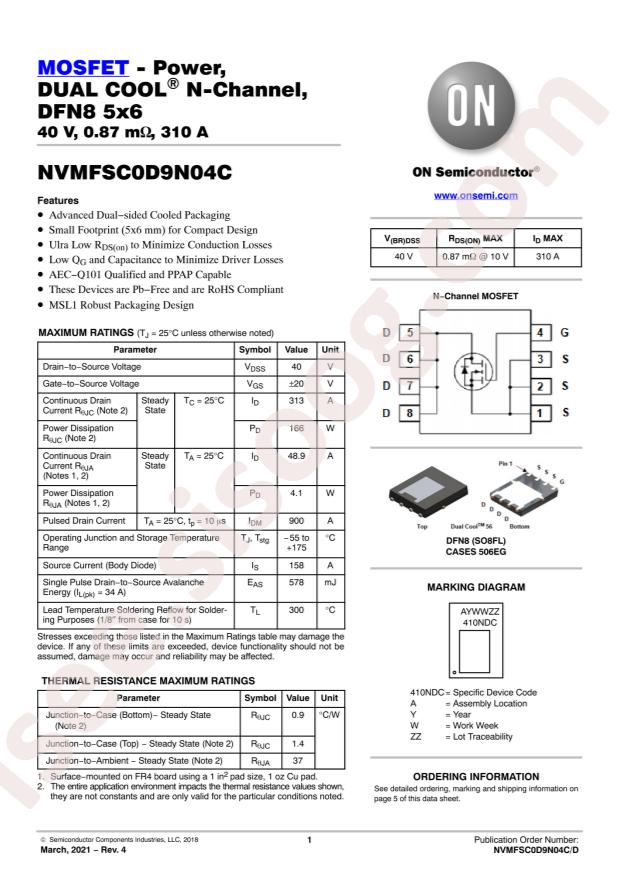

NVMFSC0D9N04C دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NVMFSC0D9N04C
|
|
حجم فایل
|
96.215
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NVMFSC0D9N04C
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
4.1W;166W
-
Total Gate Charge (Qg@Vgs):
86nC@10V
-
Drain Source Voltage (Vdss):
40V
-
Input Capacitance (Ciss@Vds):
6100pF@25V
-
Continuous Drain Current (Id):
48.9A;313A
-
Gate Threshold Voltage (Vgs(th)@Id):
3.5V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
0.87mΩ@50A,10V
-
Package:
DFN-8(4.9x5.8)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
40V
-
Current - Continuous Drain (Id) @ 25°C:
48.9A (Ta), 313A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
870µOhm @ 50A, 10V
-
Vgs(th) (Max) @ Id:
3.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
86nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
6100pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
4.1W (Ta), 166W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-DFN (5x6.15)
-
Package / Case:
8-PowerVDFN
-
Base Part Number:
NVMFSC
-
detail:
N-Channel 40V 48.9A (Ta), 313A (Tc) 4.1W (Ta), 166W (Tc) Surface Mount 8-DFN (5x6.15)
